Loyalty Management POS API Powered by MuleSoft

Use Loyalty Management Restaurants POS Integrations API to provide a seamless dining experience to your loyalty program members. Instead of creating different APIs for each loyalty action, this integration contains a single API with these enum values to choose the API request:

• LOYALTY_SEARCH
• LOYALTY_INQUIRE
• LOYALTY_REDEEM
• LOYALTY_ACCRUE

To add or modify these enum values, modify the post:\loyalty-integrations\restaurants\pos:application\json:loyalty-management-api-config flow in the loyalty-management-api.xml file.

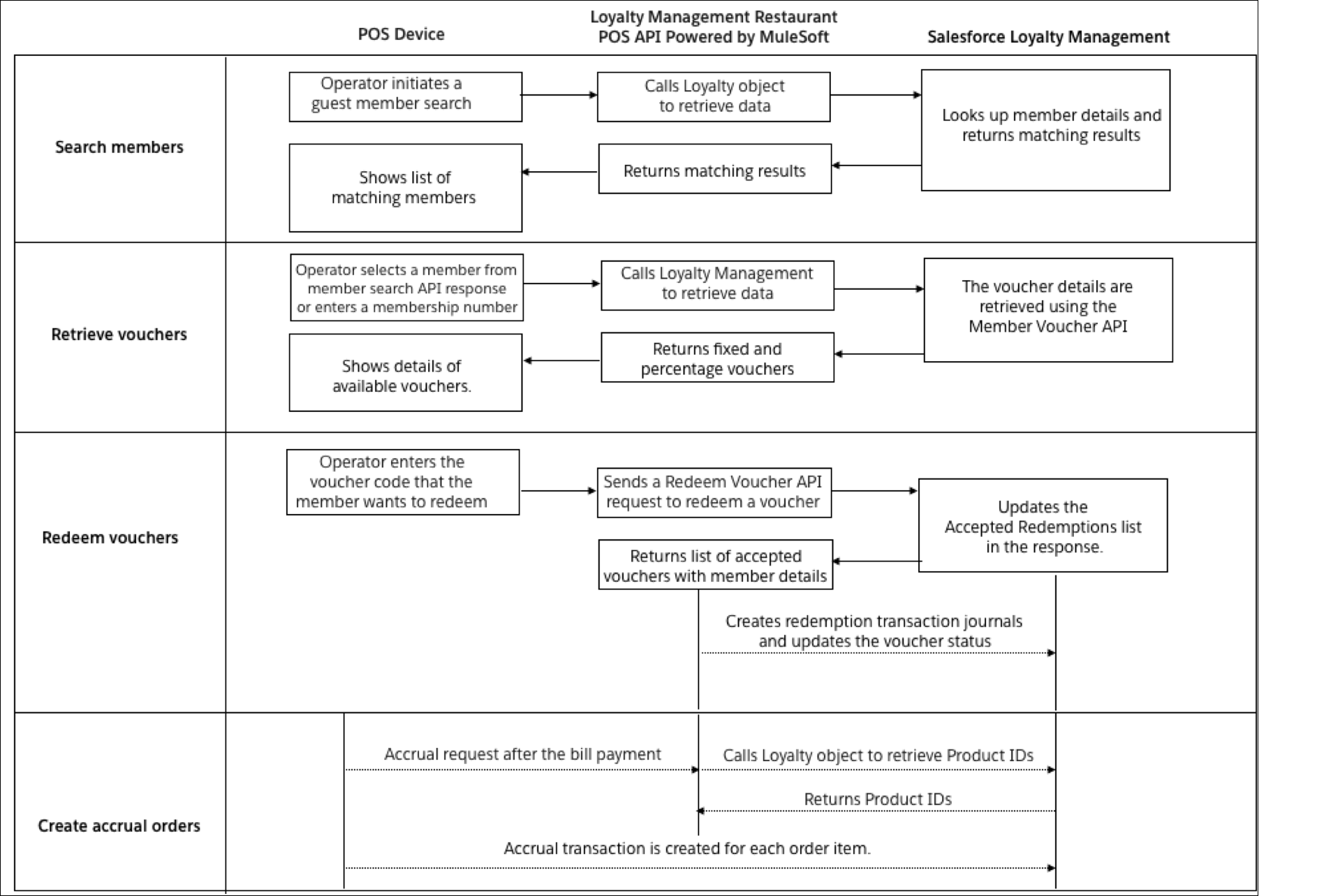

This workflow explains the flow of the Loyalty Management Restaurant POS API:

Search for a Member

POST /loyalty-integrations/restaurants/pos

Request

Headers

Transaction-Type

String Required

The type of transaction.

Enum value:

LOYALTY_SEARCH

Transaction-GUID

String

The identifier that helps to uniquely identify a transaction across the integration.

Authorization

String Required

Alphanumberic token to authorize the request.

Body

Media type: application/json

loyalty-search:

{
  "transactionType":"LOYALTY_SEARCH",
  "searchTransactionInformation":{
    "searchCriteria":{
      "firstName": "Greg",
      "lastName": "",
      "email": "",
      "phone": "14200000000"
    }
  }
}

Response

loyalty-search:

{
    "searchResponse": {
        "accounts": [
            {
                "identifier": "24345677",
                "firstName": "Greg",
                "lastName": "Thompson",
                "phone": "14200000000",
                "email": "gregthompson@sfloyaltymanagementdemo.org"
            }
        ]
    },
    "transactionStatus": "ACCEPT"
}

Inquire Member Vouchers

Retrieves member profile details and the assigned vouchers.

POST /loyalty-integrations/restaurants/pos

Request

Headers

Transaction-Type

String Required

The type of transaction.

Enum value:

LOYALTY_INQUIRE

Transaction-GUID

String

The identifier that helps to uniquely identify a transaction across the integration.

Authorization

String Required

Alphanumberic token to authorize the request.

Body

loyalty-inquire-request:

{
  "transactionType": "LOYALTY_INQUIRE",
  "checkTransactionInformation": {
    "loyaltyIdentifier": "24345677",
    "check": {
      "guid": "9d2dee33-7803-485a-a2b1-2c7538e597ee",
      "entityType":null,
      "paymentStatus": "OPEN",
      "amount": 97.42,
      "taxExempt": false,
      "totalAmount": 103.51,
      "selections": [
        {
          "guid": "5e4fa4aa-4269-4383-9bbd-774591bbfb3c",
          "entityType": null,
          "externalId": null,
          "fulfillmentStatus": "NEW",
          "item": {
            "guid": "5abf524e-31b5-4c1b-a797-7a44d888d071",
            "entityType": "MenuItem",
            "externalId": "100000000100004071"
          },
          "quantity": 8
        }
      ]
    }
  }
}

Response

loyalty-inquire-response:

{
    "checkResponse": {
        "accountInfo": {
            "identifier": "24345677",
            "firstName": "Greg",
            "lastName": "Thompson",
            "email": "gregthompson@sfloyaltymanagementdemo.org"
        },
        "offers": [
            {
                "identifier": "0kDHu000000QiyqMAC_00000006_HLDY2002SEAS",
                "name": "HLDY2002SEAS",
                "applicable": true,
                "selectionType": "CHECK",
                "amount": 19.4840,
                "quantity": 1,
                "expiration": [
                    {
                        "date": "2023-12-21T00:00:00Z",
                        "quantity": 1
                    }
                ],
                "itemApplicable": []
            }
        ],
        "rejectedRedemptions": [],
        "appliedRedemptions": [],
        "userMessage": "Visit https://salesforce.com for exciting offers!"
    },
    "transactionStatus": "ACCEPT"
}

Redeem Member Vouchers

Redeems a voucher for a loyalty program member.

POST /loyalty-integrations/restaurants/pos

Request

Headers

Transaction-Type

String Required

The type of transaction.

Enum value:

LOYALTY_REDEEM

Transaction-GUID

String

The identifier that helps to uniquely identify a transaction across the integration.

Authorization

String Required

Alphanumberic token to authorize the request.

Body

loyalty-redeem-request:

{
  "transactionType":"LOYALTY_REDEEM",
  "checkTransactionInformation":{
    "loyaltyIdentifier": "24345677",
    "check": {
      "guid":"9c1opk33-7803-485a-a2b1-2c7538e597ee",
      "entityType":"Check",
      "selections":[]
    },
    "redemptions": [
        {
          "identifier": "0kDHu000000QiyqMAC_00000006_HLDY2002SEAS",
          "amount": 19.24
        }
      ]
    }
}

Response

loyalty-redeem-response:

{
    "transactionStatus": "ACCEPT",
    "checkResponse": {
        "accountInfo": {
            "identifier": "24345677",
            "firstName": "Greg",
            "lastName": "Thompson",
            "email": "gregthompson@sfloyaltymanagementdemo.org"
        },
        "rejectedRedemptions": [],
        "appliedRedemptions": [
            {
                "amount": 19.24,
                "identifier": "0kDHu000000QiyqMAC_00000006_HLDY2002SEAS",
                "itemApplication": []
            }
        ],
        "userMessage": "Visit https://salesforce.com for exciting offers!"
    }
}

Create Accrual Order

Creates accrual order after the member pays the bill at the restaurant.

POST /loyalty-integrations/restaurants/pos

Request

Headers

Transaction-Type

String Required

The type of transaction.

Enum value:

LOYALTY_ACCRUE

Transaction-GUID

String

The identifier that helps to uniquely identify a transaction across the integration.

Authorization

String Required

Alphanumberic token to authorize the request.

Body

loyalty-accrue-request:

{
  "transactionType": "LOYALTY_ACCRUE",
  "searchTransactionInformation": null,
  "checkTransactionInformation": {
    "loyaltyIdentifier": "24345677",
    "check": {
      "guid":"9d2dee33-7803-485a-a2b1-2c7538e597ee",
      "entityType":"Check",
      "externalId":null,
      "displayNumber":"183",
      "payments":[
        {
          "guid":"8b251345-3cda-486e-91c9-cd760c6087c6",
          "entityType":"OrderPayment",
          "houseAccount": null,
          "amount":8,
          "tipAmount":0,
          "amountTendered":9,
          "type":"CASH",
          "paidDate":"2019-04-08T21:16:46.738Z",
          "paymentStatus":"CAPTURED"
        }
      ],
      "paymentStatus":"CLOSED",
      "amount":8,
      "openedDate":"2023-11-21T08:16:45.862Z",
      "selections":[
        {
          "guid":"c3283098-44c1-4712-866a-2b53cdc39w25",
          "entityType":"MenuItemSelection",
          "externalId":null,
          "fulfillmentStatus":"SENT",
          "selectionType":"NONE",
          "price":8,
          "quantity": 1,
          "item":{
            "guid":"859d3db8-9dd4-42ab-9f6a-374d09e27825",
            "entityType":"MenuItem",
            "externalId":null
          },
          "createdDate":"2019-04-08T21:16:46.345Z"
        }
      ],
      "closedDate":"2019-04-08T21:16:46.767Z"
    }
  }
}

Response

loyalty-accrue-response:

{
    "transactionStatus": "ACCEPT"
}
