MuleSoft Accelerator for Salesforce B2C Commerce Cloud

The following provides guidance on how to use the custom BAPI code (ZBAPI_CUSTOMER) for your SAP instance.

Important: You must complete the following instructions before proceeding to Use case 5 - Customer sync.

BAPI custom objects

You must create the following ABAP objects in order to use this custom BAPI, which are described below.

Data elements:

• Z_CC_CUSTNUMB

Structures

• ZES_CUSTOMER

Table types:

• ZTY_CUSTOMER

Transparent tables

• ZTT_CUSTOMER

Function group:

• ZFG_CUSTOMER

Function modules:

• ZBAPI_CUSTOMER
• ZBAPI_CUSTOMER_CREATE
• ZBAPI_CUSTOMER_CUSTOM_FIELDS
• ZBAPI_CUSTOMER_UPDATE
• ZBAPI_QUERY

Creating data elements

Object	How to create
Z_CC_CUSTNUMB

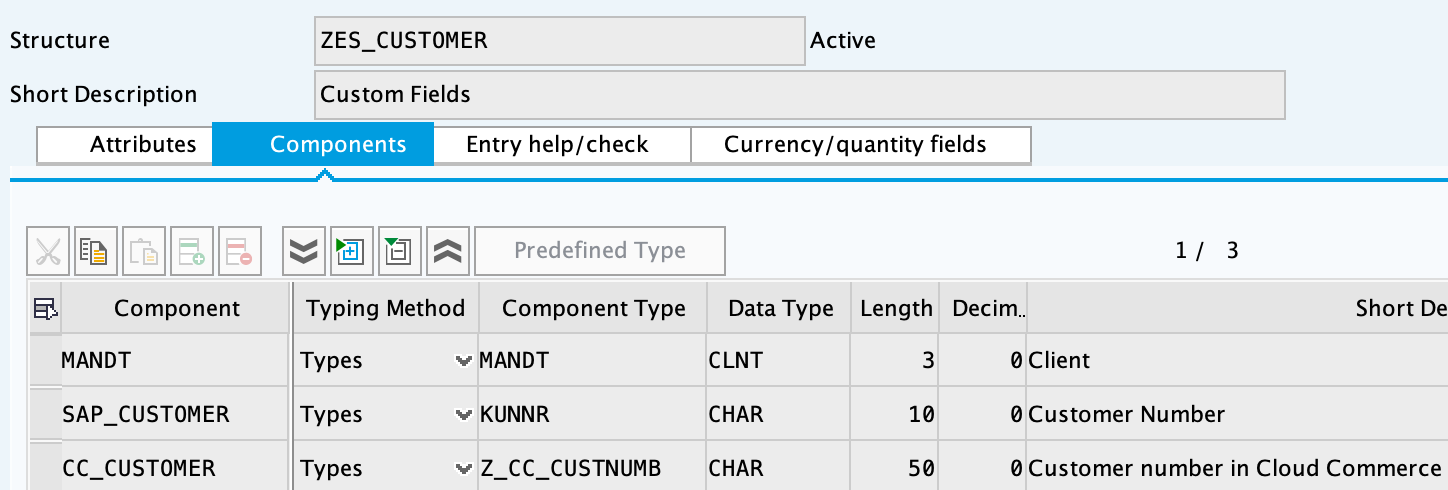

Creating structures

Object	How to create
ZES_CUSTOMER

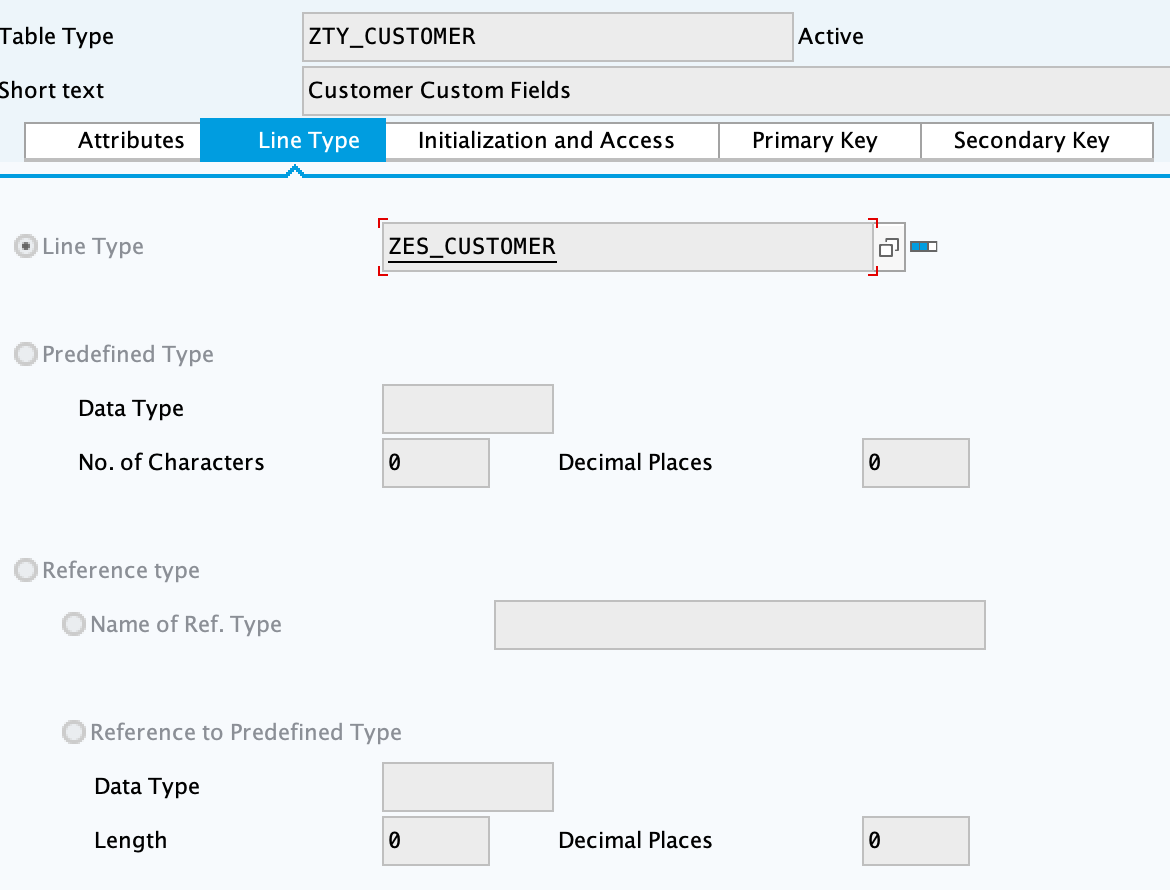

Creating table types

Object	How to create
ZTY_CUSTOMER

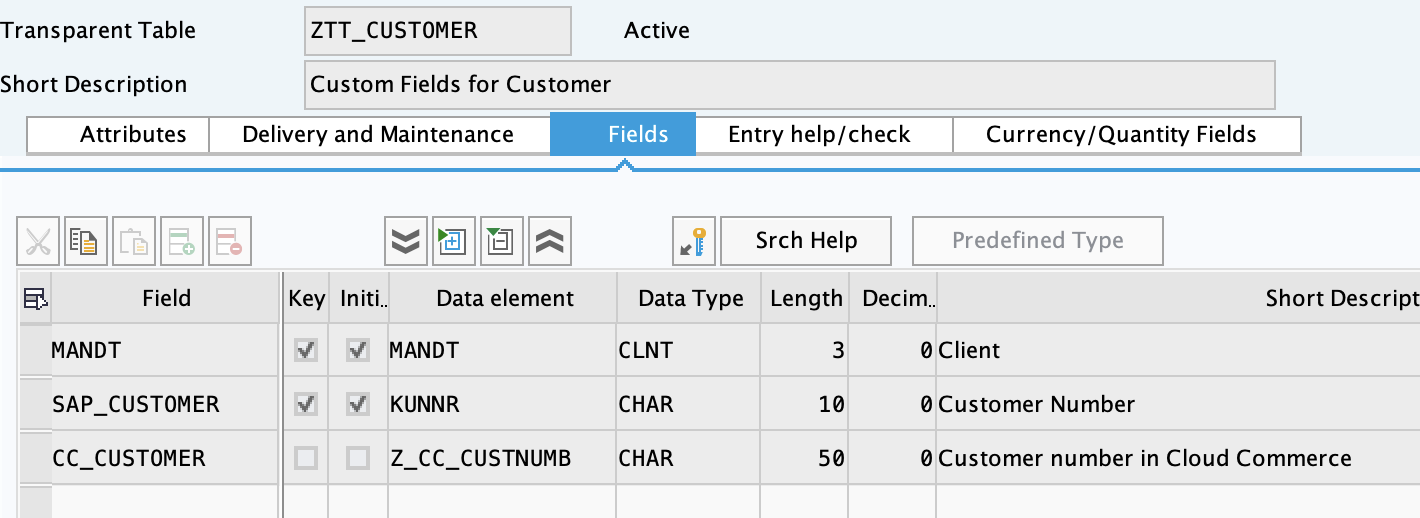

Creating transparent tables

Object	How to create
ZTT_CUSTOMER

Creating function groups and function modules

1. Create the function group "ZFG_CUSTOMER".

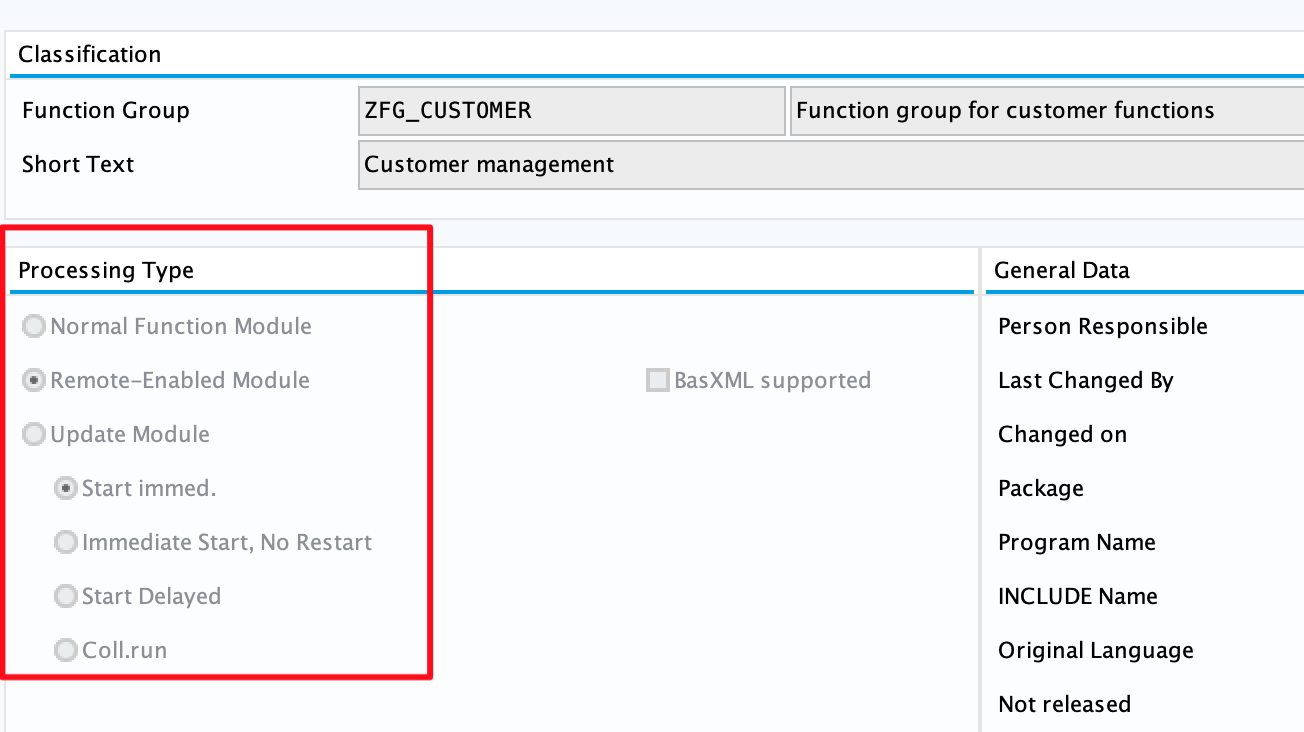

2. Create the function module "ZBAPI_CUSTOMER", using "Remote-enable module" as processing type:

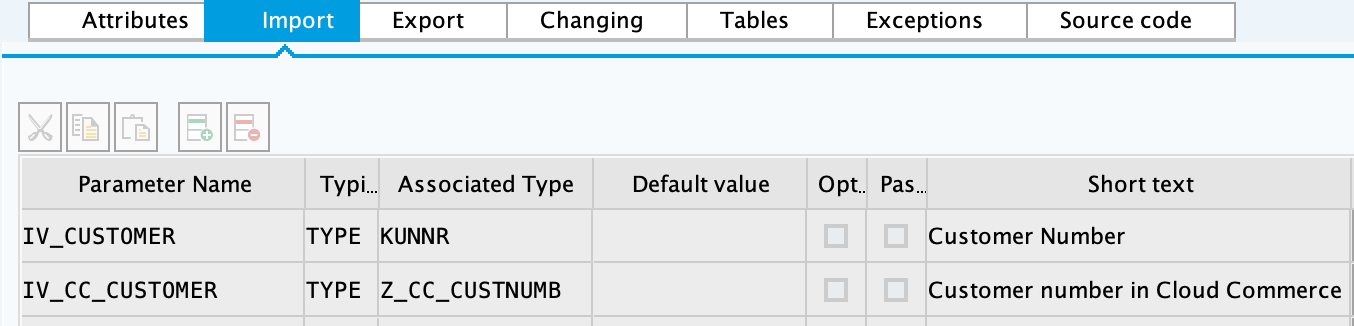

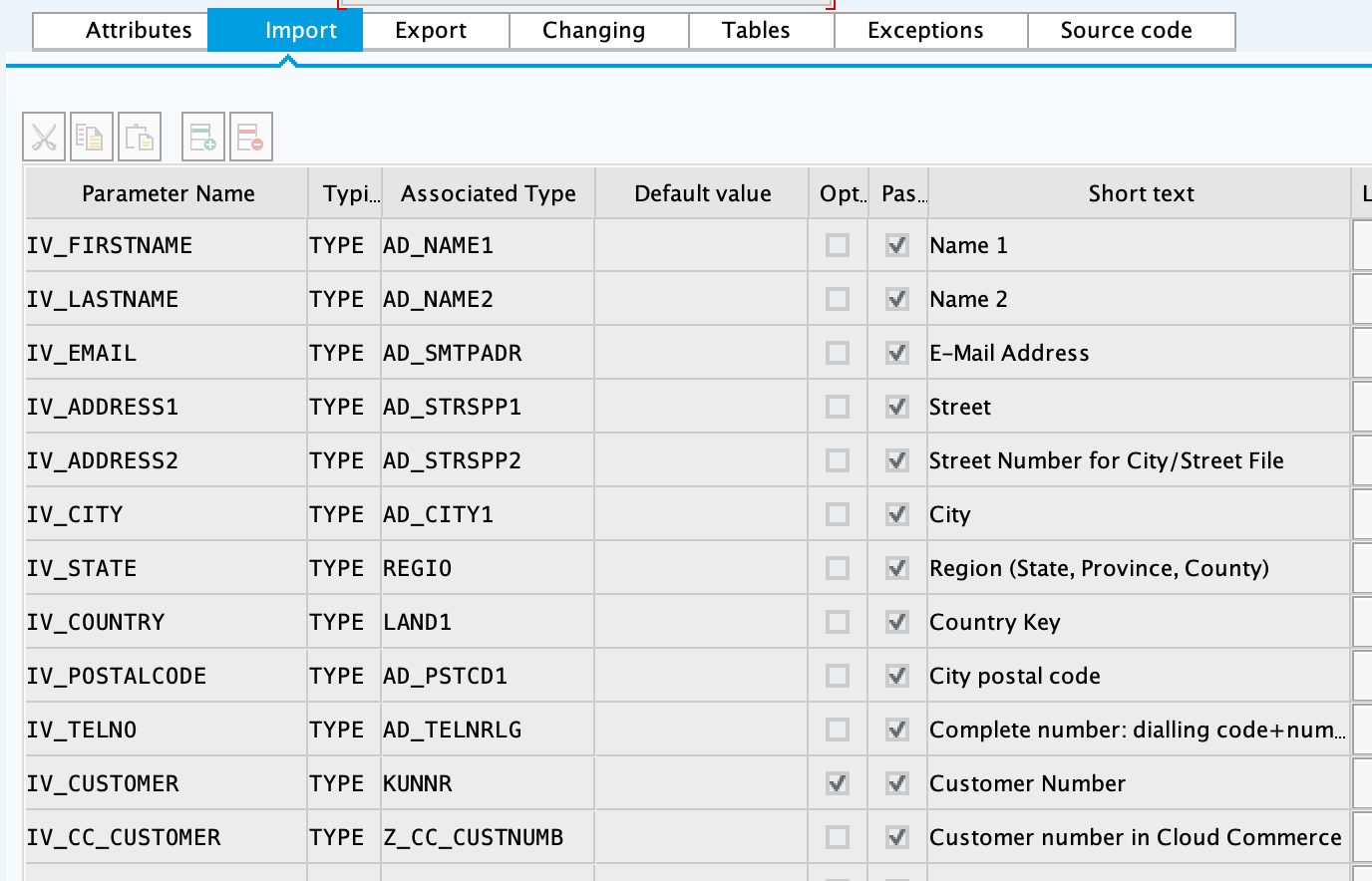

3. Complete the import parameters with the following:

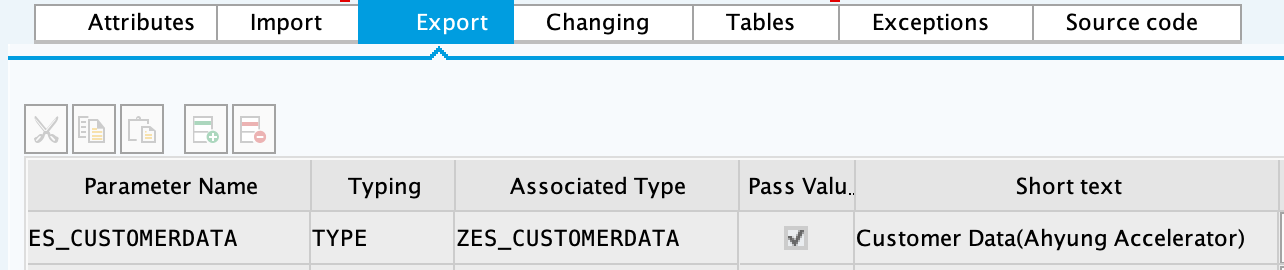

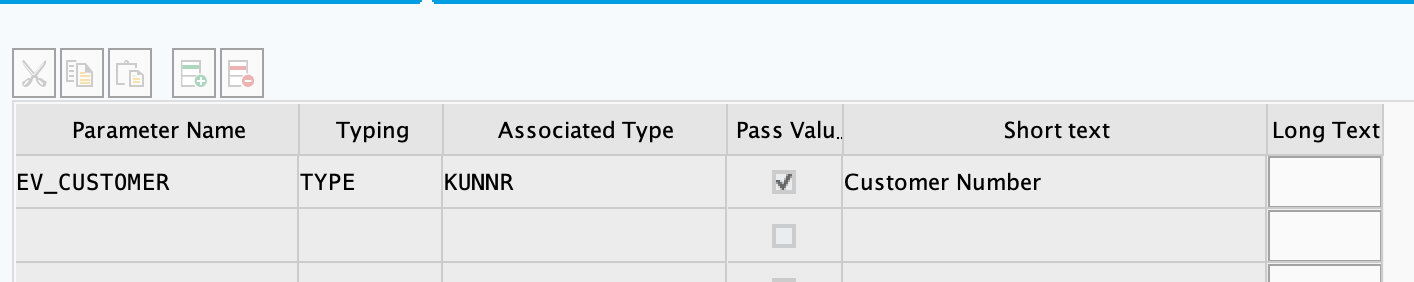

4. Complete the export parameters with the following:




5. Copy and paste the code from "ZBAPI_CUSTOMER.txt".

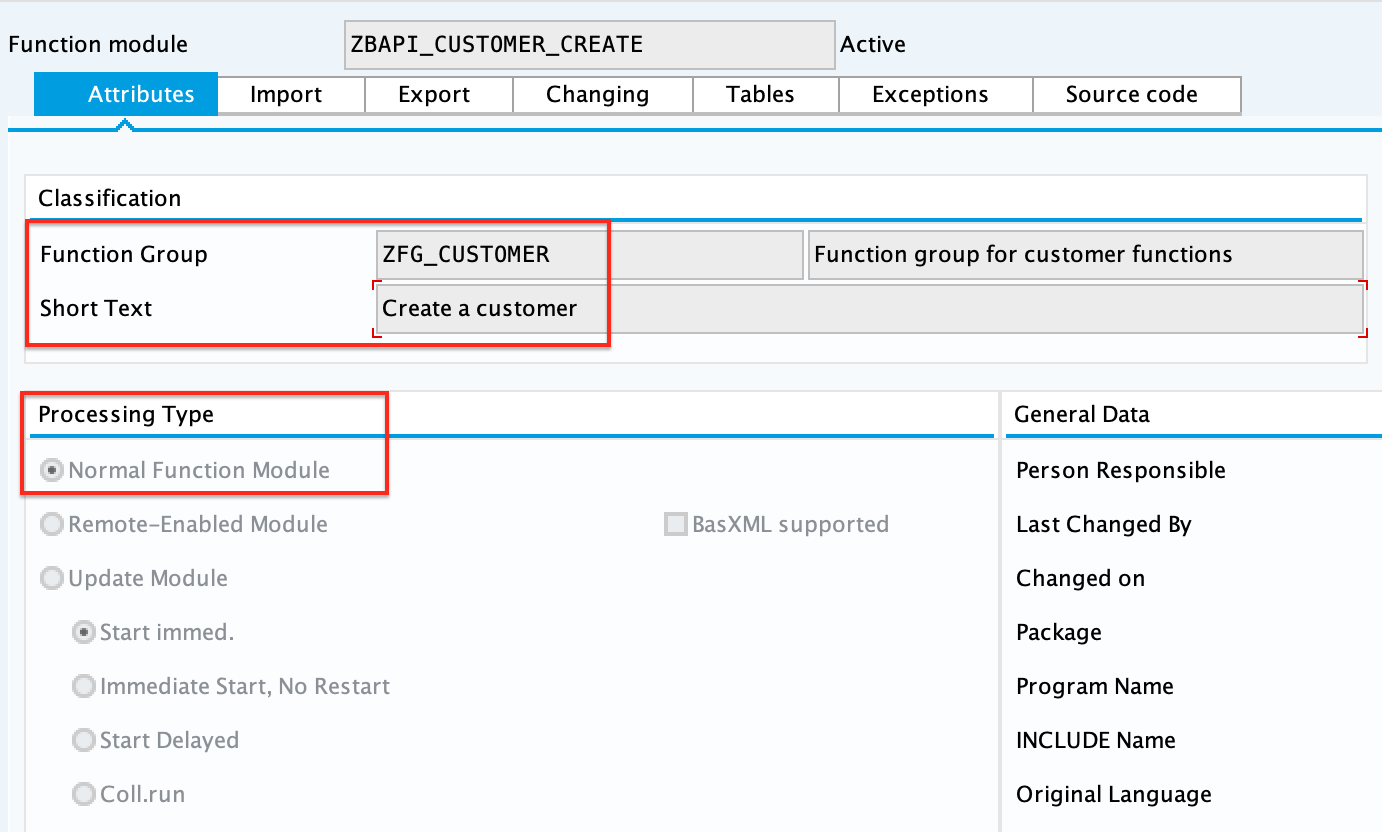

6. Create the function module "ZBAPI_CUSTOMER_CREATE":

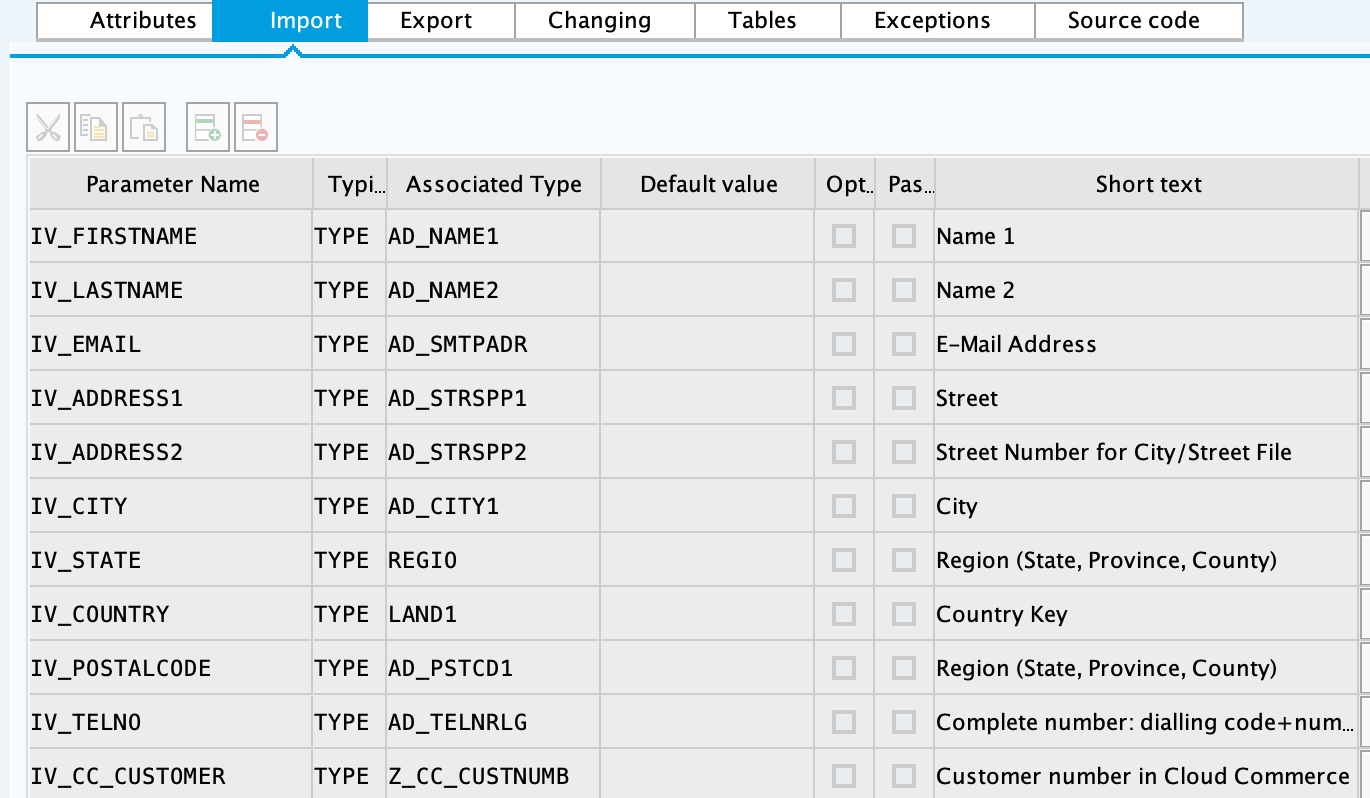

7. Complete the import parameters with the following:

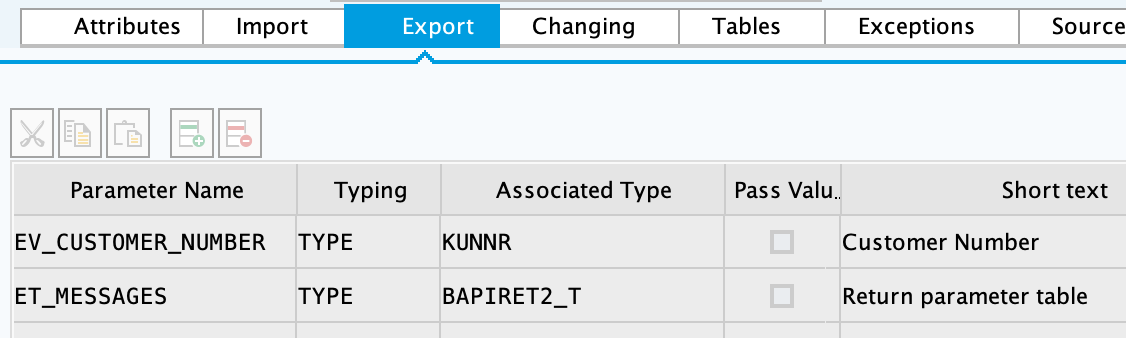

8. Complete the export parameters with the following:




9. Copy and paste the code from "ZBAPI_CUSTOMER_CREATE.txt".

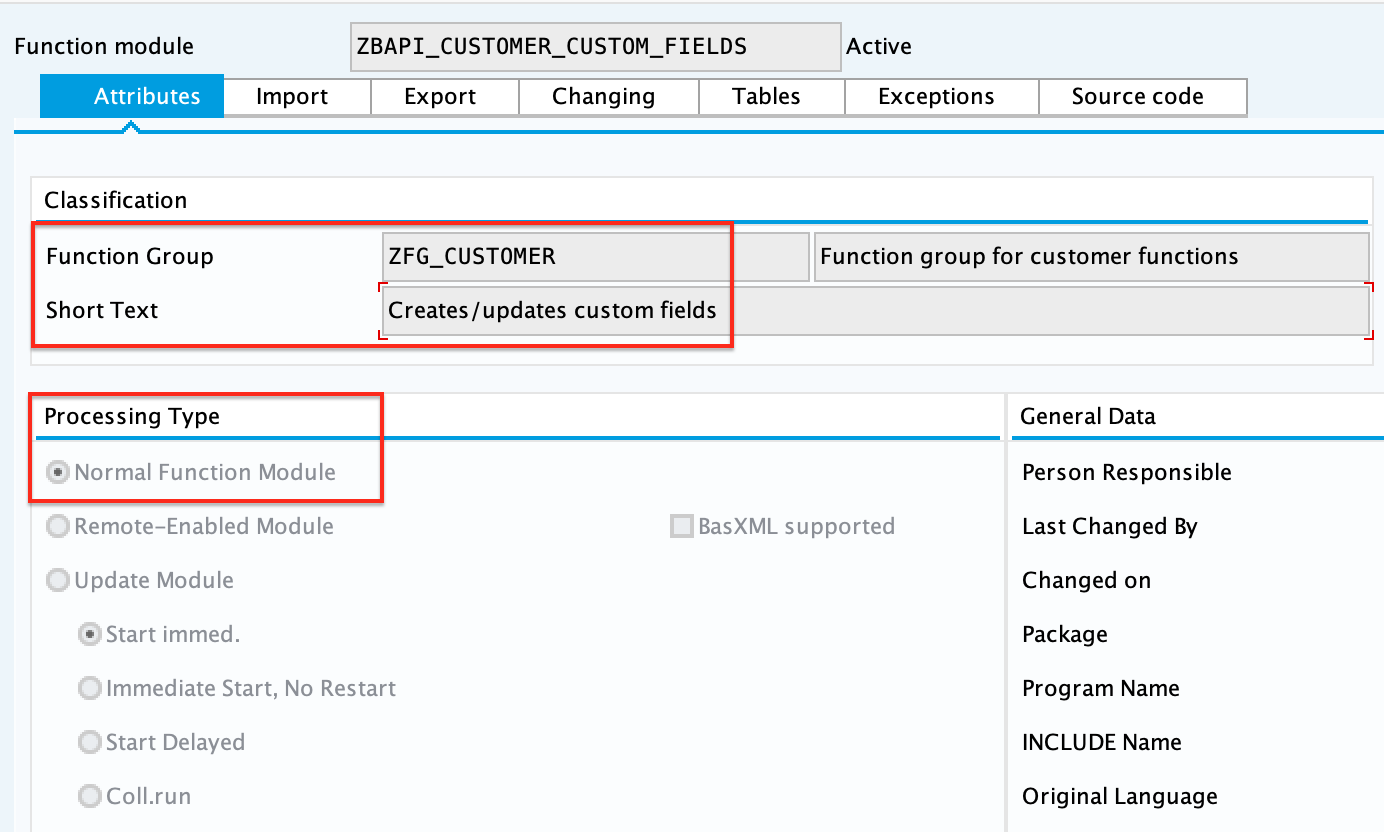

10. Create the function module "ZBAPI_CUSTOMER_CUSTOM_FIELDS":




11. Complete the import parameters with the following:




12. Copy and paste the code from "ZBAPI_CUSTOMER_CUSTOM_FIELDS.txt".


13. Create the function module "ZBAPI_CUSTOMER_UPDATE":

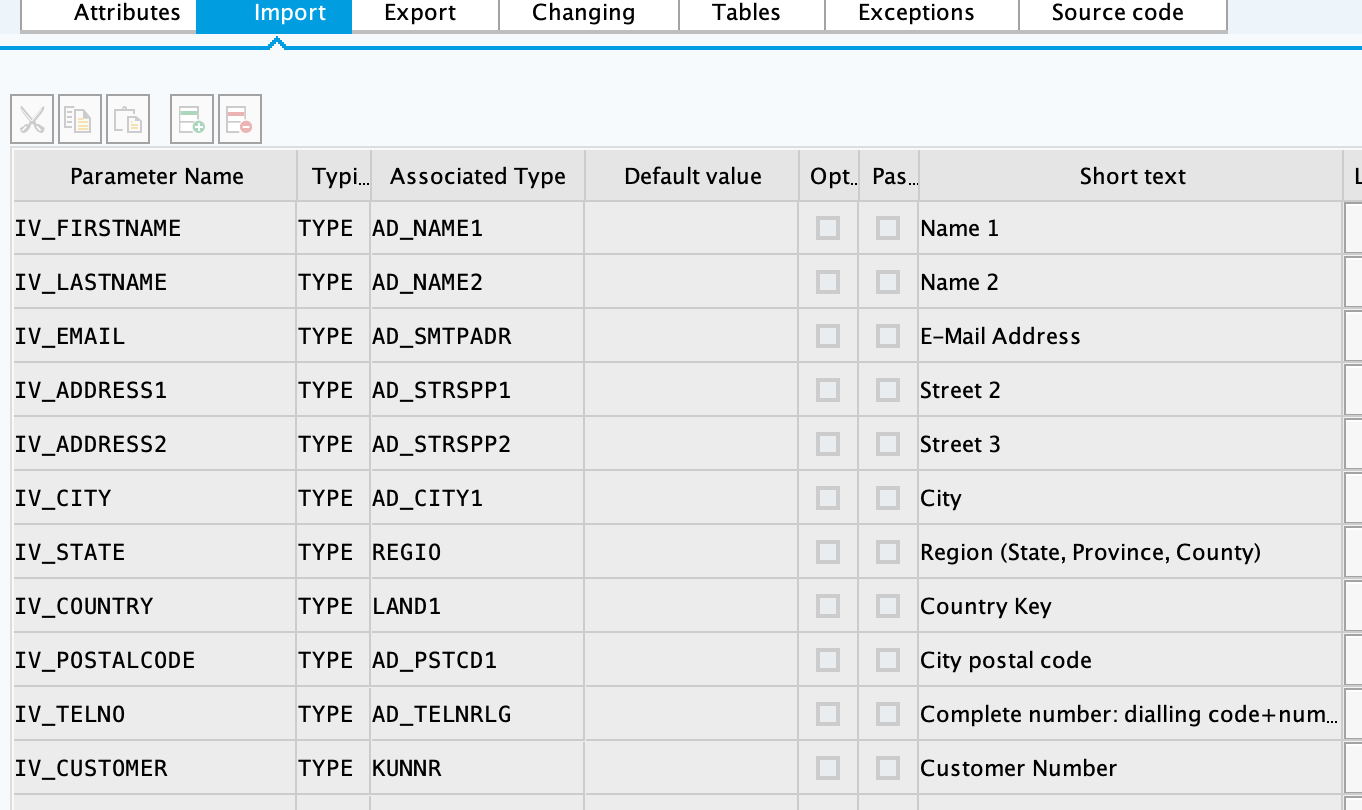

14. Complete the import parameters with the following:

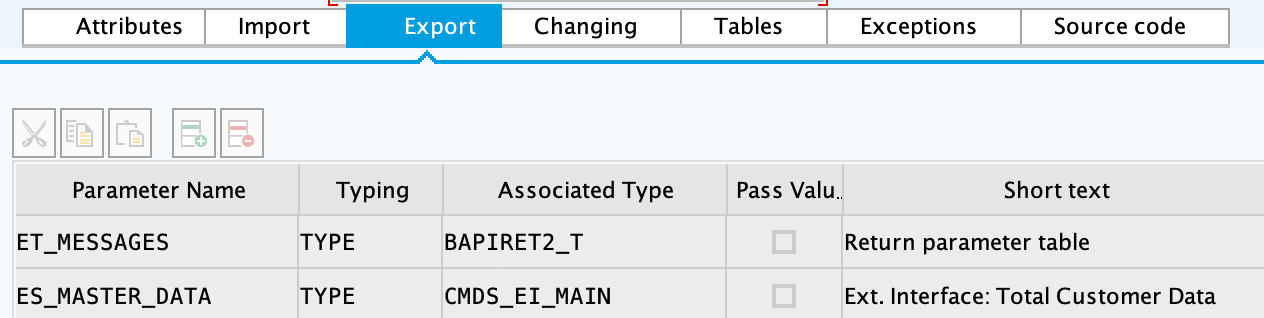

15. Complete the export parameters with the following:




16. Copy and paste the code from "ZBAPI_CUSTOMER_UPDATE.txt".

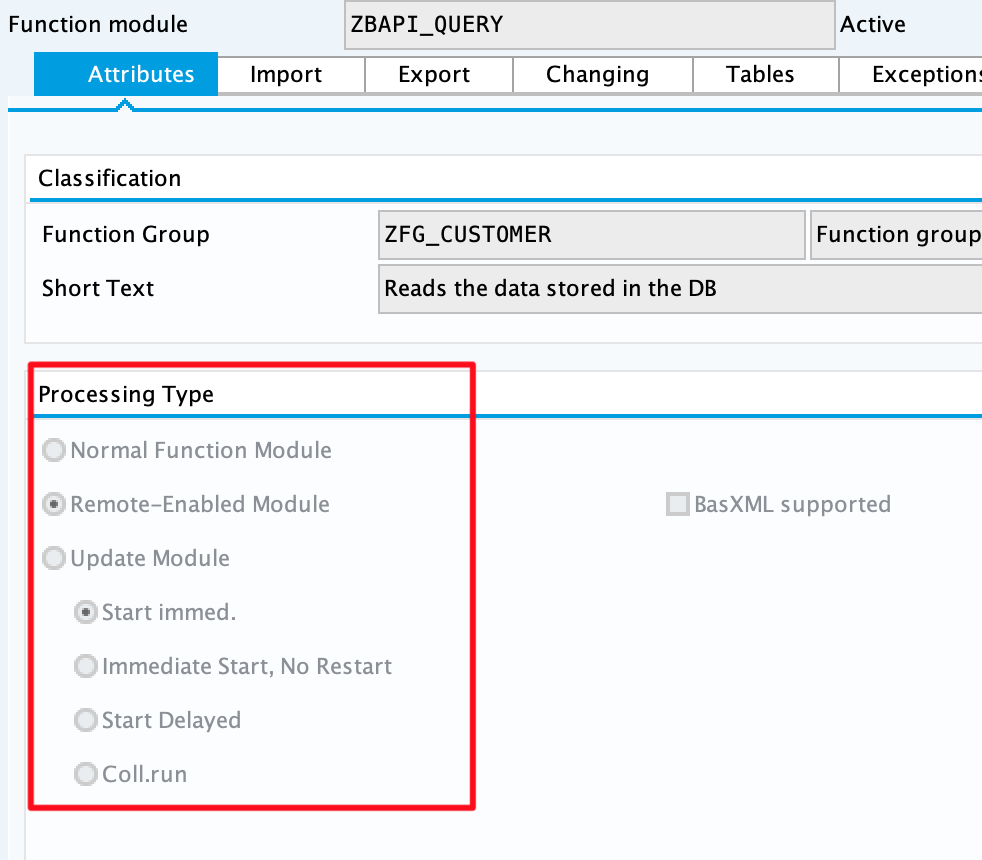

17. Create the function module "ZBAPI_QUERY", using "Remote-enable module" as processing type:

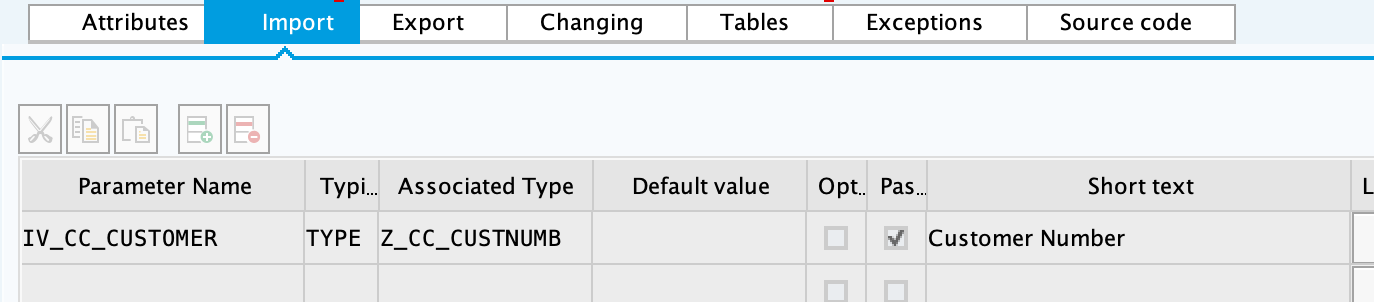

18. Complete the import parameters with the following:




19. Complete the export parameters with the following:




20. Copy and paste the code from "ZBAPI_QUERY.txt".

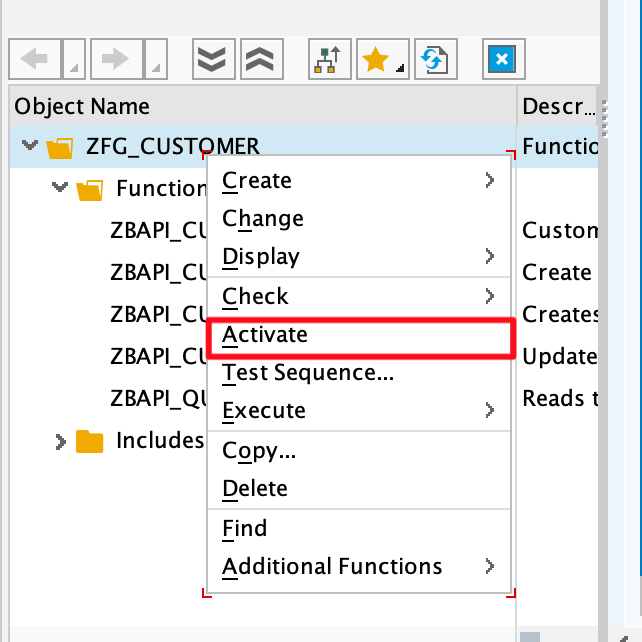

21. Activate the entire function group by right-clicking on it in the tree and then selecting "Activate":
