SAP Custom BAPI setup guide - Inventory

The following provides guidance on how to use the custom BAPI code (ZBAPIFM\_MATERIAL\_GET\_DATA) for your SAP instance.

Important: You must complete the following instructions before proceeding to Use case 2 - Inventory.

BAPI custom objects

You must create the following ABAP objects in order to use this custom BAPI, which are described below.

Data elements:

  • ZBAPI_MATERIALDTE_DATE

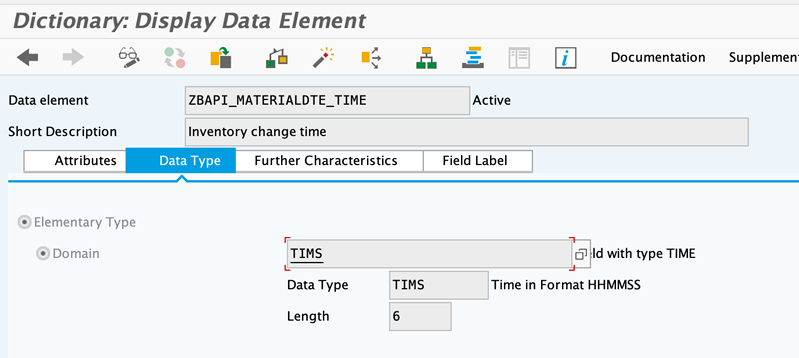

  • ZBAPI_MATERIALDTE_TIME

Structures

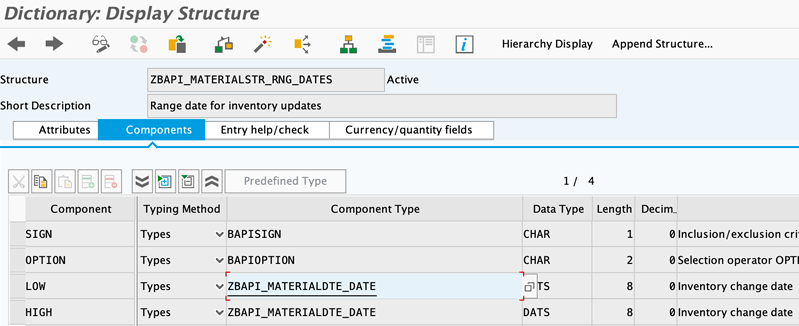

  • ZBAPI_MATERIALSTR_RNG_DATES

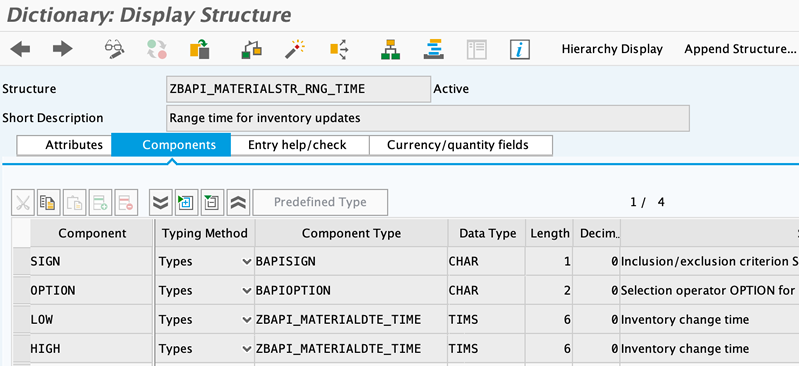

  • ZBAPI_MATERIALSTR_RNG_TIME

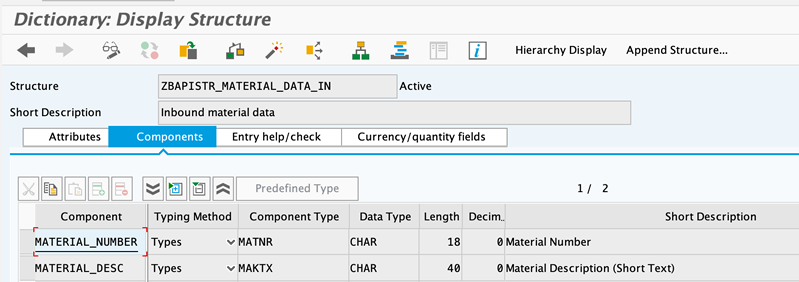

  • ZBAPISTR_MATERIAL_DATA_IN

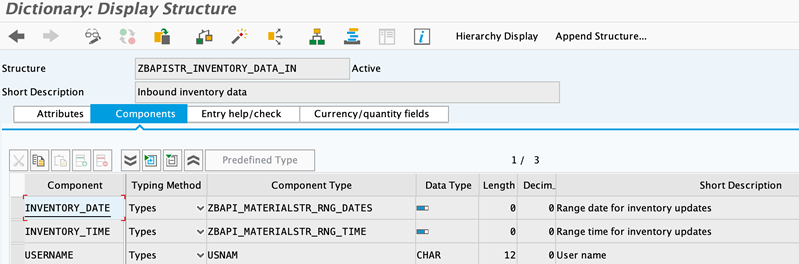

  • ZBAPISTR_INVENTORY_DATA_IN

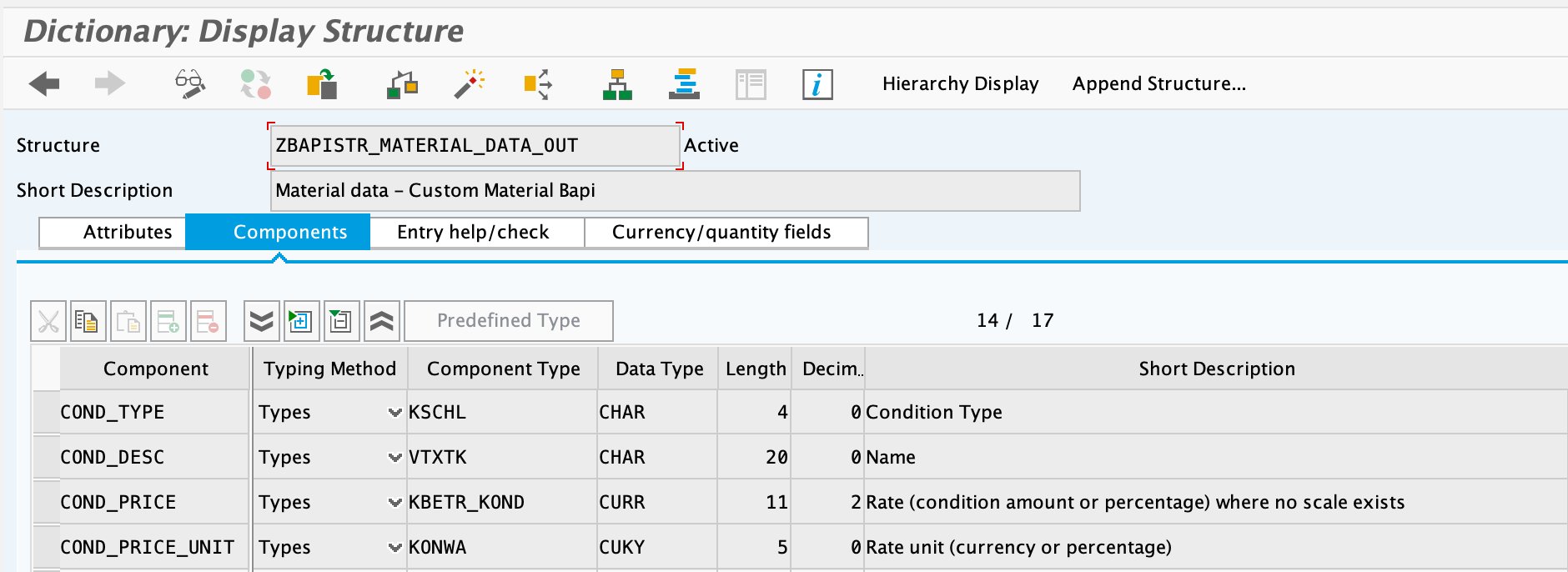

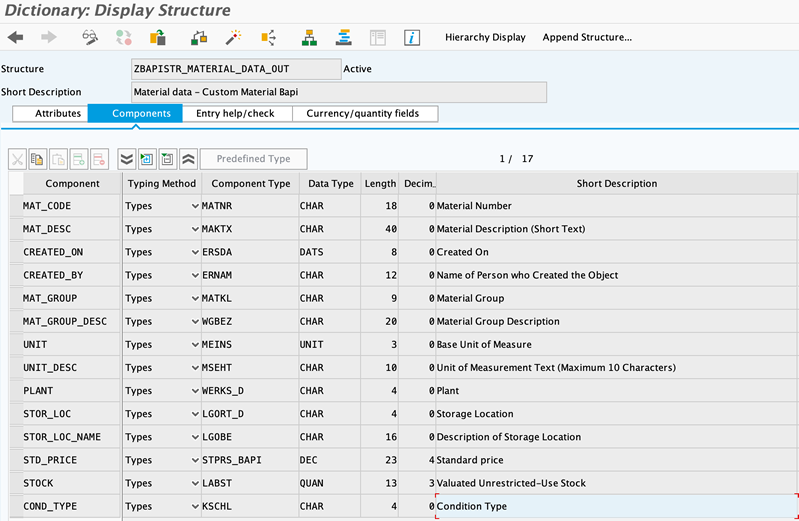

  • ZBAPISTR_MATERIAL_DATA_OUT

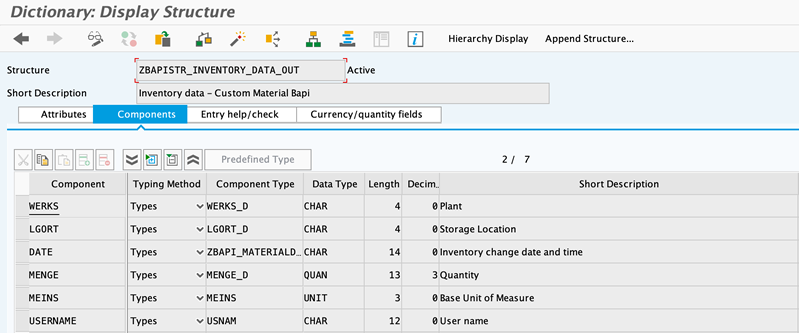

  • ZBAPISTR_INVENTORY_DATA_OUT

Table types:

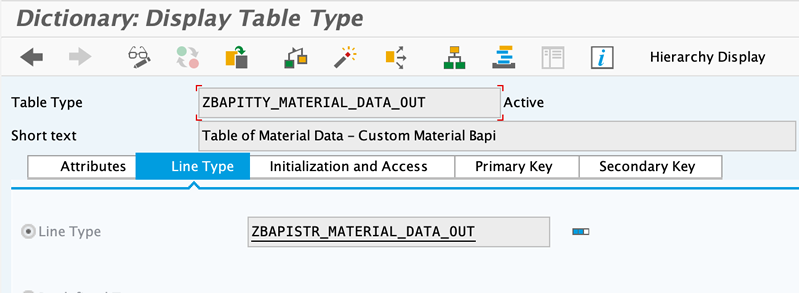

  • ZBAPITTY_MATERIAL_DATA_OUT

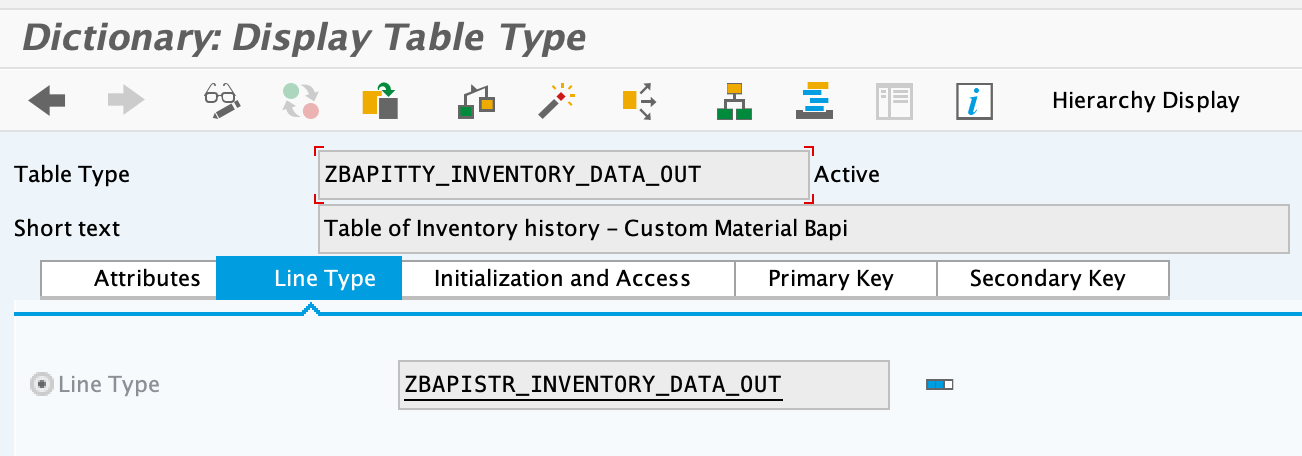

  • ZBAPITTY_INVENTORY_DATA_OUT
  • ZBAPI_MATERIALTTY_RNG_DATES

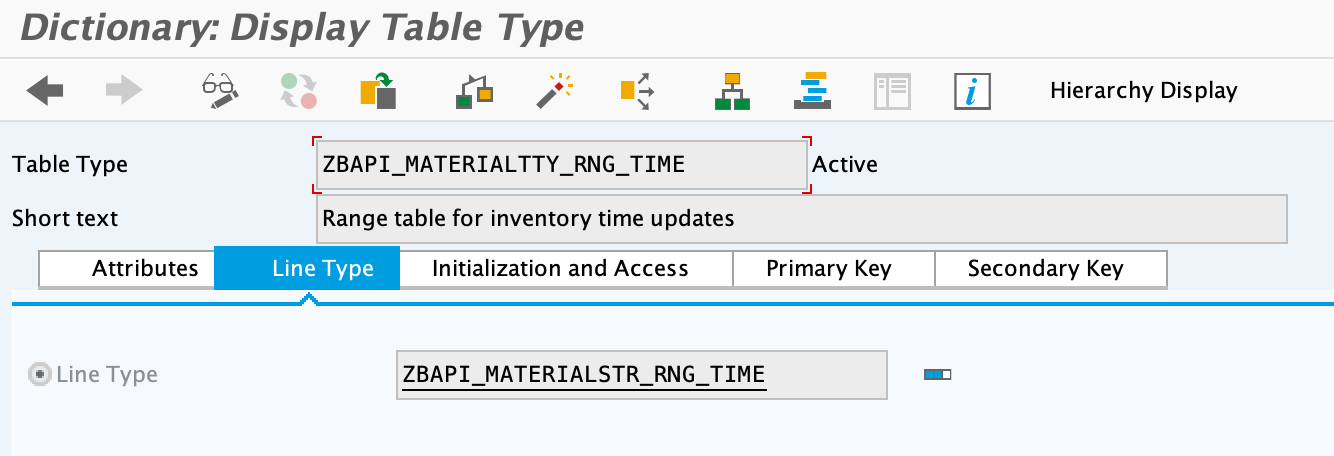

  • ZBAPI_MATERIALTTY_RNG_TIME

Class/interface: (optional, needed to handle exceptions)

  • ZCL_EXCEPTION_HELPER

Function group:

  • ZBAPIFGR_MATERIAL

Data elements

ObjectHow to create

Structures

ObjectHow to create

Table types

ObjectHow to create

Class/Interface

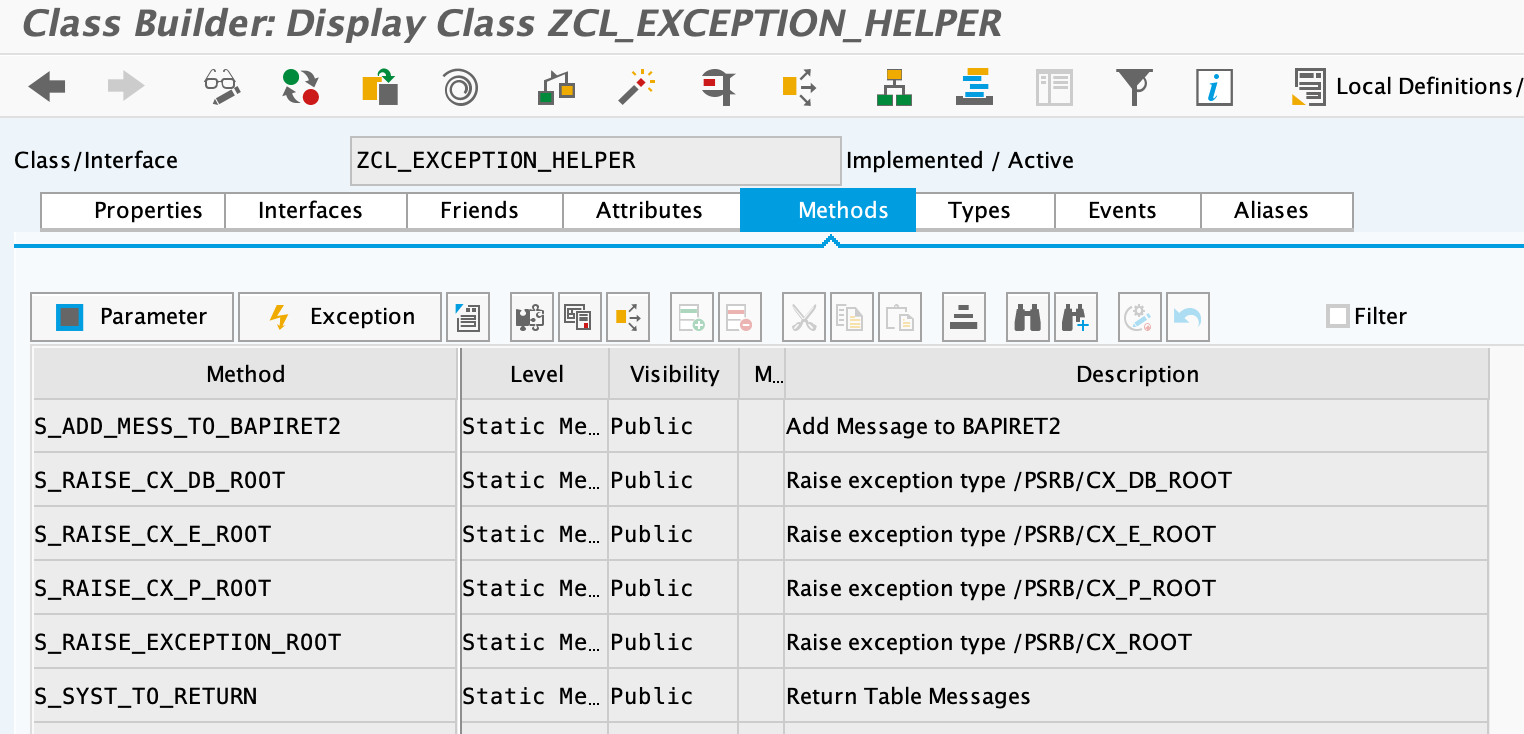

ZCL_EXCEPTION_HELPER

This class is used to handle the BAPI messages. In this case, the method used is S_SYST_TO_RETURN:



Creating a function group

The following describes how to create a function group named ZBAPIFGR_MATERIAL:

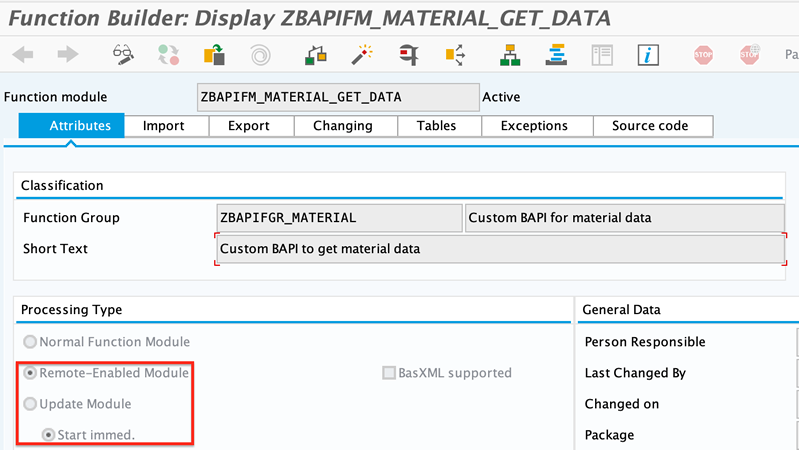

  1. Create function module ZBAPIFM_MATERIAL_GET_DATA, using "Remote-enable module" as processing type:


  2. Complete the import parameters with the following:

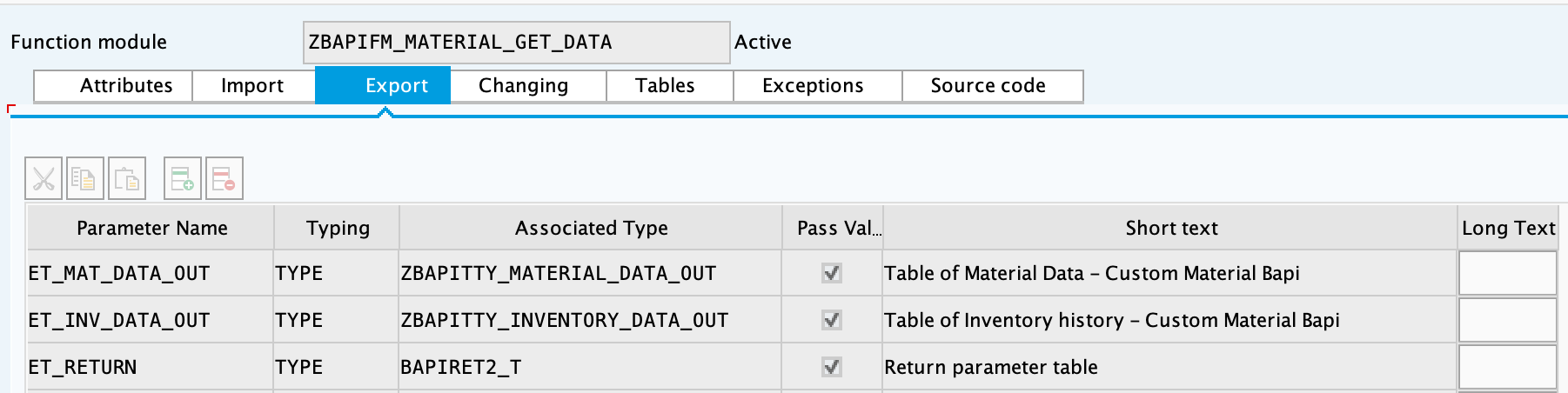

  3. Complete the export parameters with the following:


  4. Copy and paste the code from ZBAPIFM_MATERIAL_GET_DATA.txt, and then activate it.

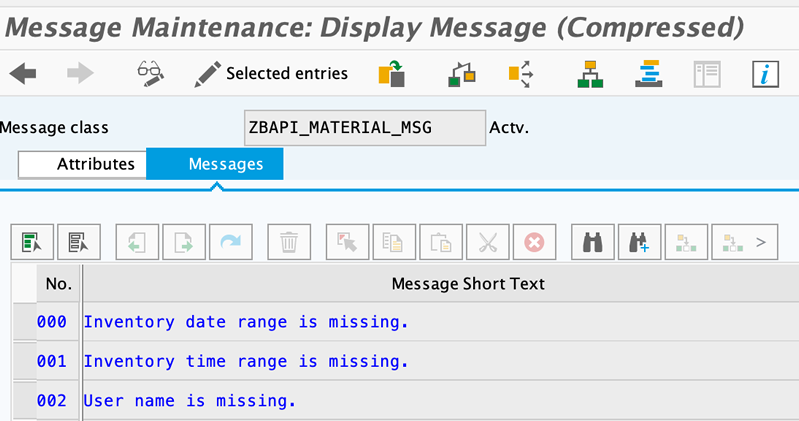

  5. Create ZBAPI_MATERIAL_MSG message class with the following messages:
