Results API

(0 reviews)

API to get the results issued/released dates from OCR - Interchange , Centre /Qualification level embargos(exceptions) from CI - Direct and Scripts details & Candidate Result Status from EPS.

Overview:

This API is used to fetch results issued/released dates from OCR or CI view, fetch candidate data and fetch and post the script data from RM API
Its being used by ATS consumers to get the results data.

	API Method	REST Endpoint	Description	Consumers
1.	GET	/{version}/businessStreams/{businessStreamId}/sessions/{sessionId}/enquireServices	Get OCR-Interchange Results, Issued Result Dates(CI) and Released Result Dates(CI)	ATS
2.	POST	/{version}/candidates/scripts	POST candidate results	ATS
3.	GET	/{version}/candidates/scripts/pdf/{docStorePageId}	GET RM scripts	ATS
4.	GET	/{version}/candidates/resultStatus/businessStream/{businessStreamId}/sessions/{sessionId}/ centres/{centreId}/candidateNumber/{candidateNumber}/assessments/{assessmentCode}	GET result issue status of candidate from EPS	ATS
5.	GET	/{version}/businessStreams/{businessStreamId}/qpIdentifiers	Get the question paper details from LIBS for both CI & OCR	ATS
6.	GET	{version}/businessStream/{businessStreamId}/sessions/{sessionId}/centres/{centreId}/candidateNumber/{candidateNumber}/assessments/{assessmentCode}/components/{componentId}/resultEnquiryStatus	Get the Result enquiry status	ATS
7.	GET	{version}/businessStream/{businessStreamId}/sessions/{sessionId}/resultStatus	Get the Result status	ATS

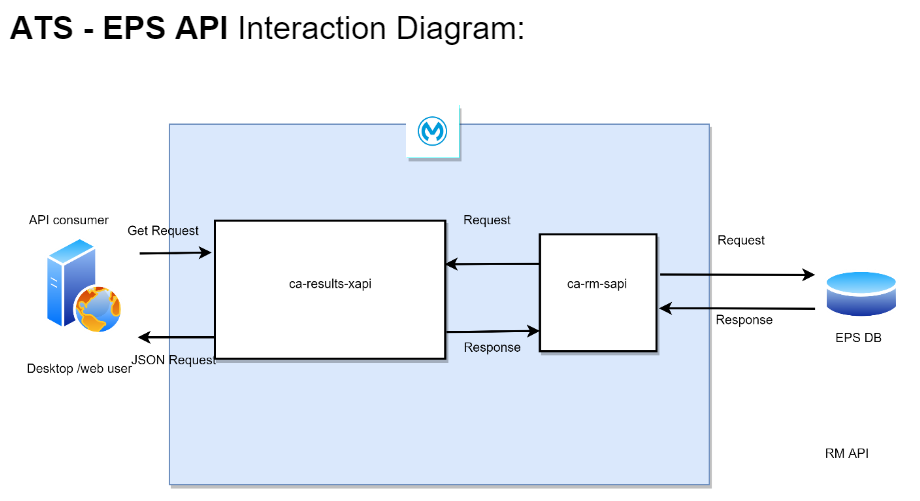

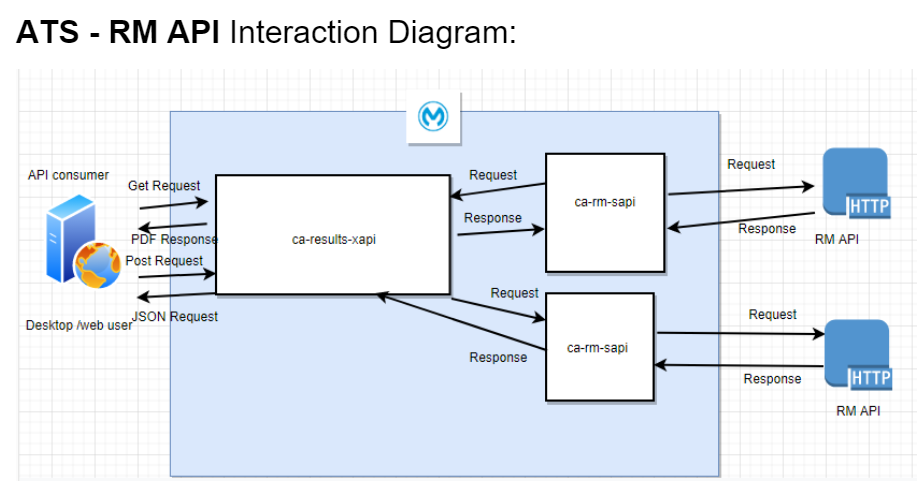

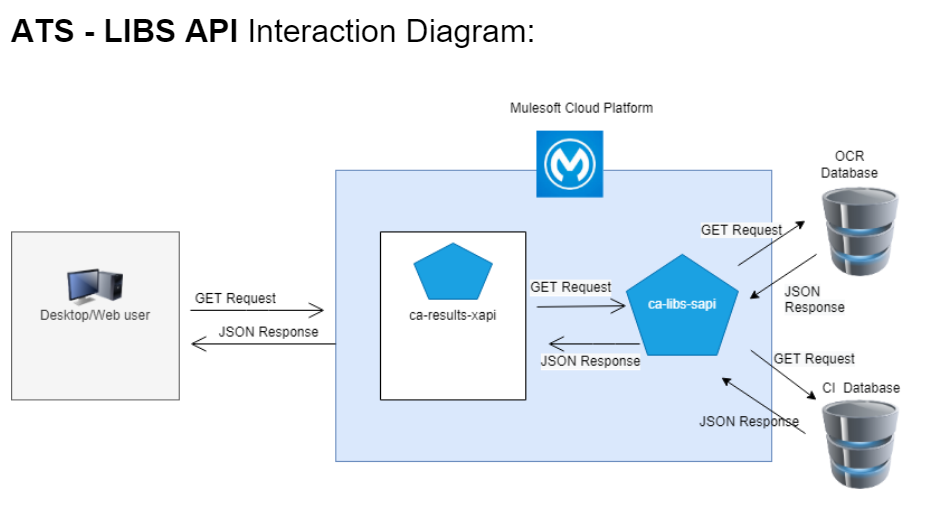

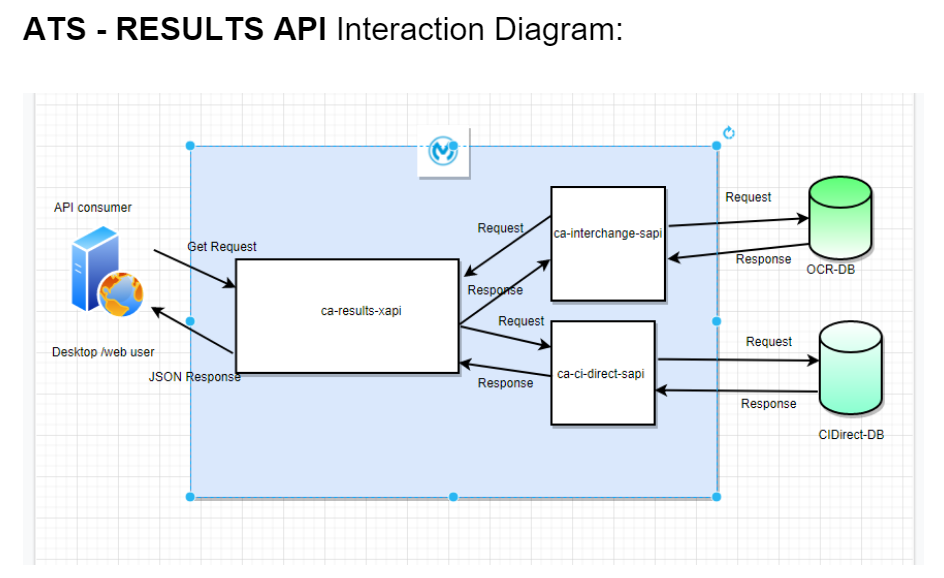

API architecture:

resources/image-df3386ee-0f7e-4f6f-8f02-e63908d59e6e.png

resources/image-4be303e1-a018-4467-ab8b-6323732ed01e.png

resources/image-cf1de0f2-b153-4d8a-8de3-02c753ecdf60.png

resources/image-953e91ad-e3ed-4414-b34b-245187676e0b.png

Sequence Diagram and Description:

ORS/CI DIRECT Results

resources/image-1102d575-0027-4760-97a3-f809a619301d.png

ORS Results

Resource : GET: /v1/businessStreams/01/sessions/{ sessionId}/enquireServices

No	Steps	Description
1.	Input Request Message	The consumer invokes the mule services along with credentials (client id and client secret) and X-TRANSACTION-ID(A code to track API calls end to end) via Mule Soft Secure API layer with the proper query params
2.	Validate the user Credentials	Desktop user credentials are validated by the security API mule gateway layer
3.	If validation fails, service returns specific fault response	If validation fails, service returns specific fault response
4.	Send the request to Experience Layer API	The Mule soft experience API Experience layer validated users request query parameters will redirect to the specific system API.
5.	Send the request to System Layer API	The request is processed further to ca -interchange-sapi where it calls the stored procedure.
6.	If Validation fails, service returns specific fault response	If the request gets failed during the validation the exception is thrown by the System API to the Experience API secure layer.
7.	Fault message redirection by the User	When Experience API layer Fails then it returns error message to the consumers
8.	Connect to the database	OCR Service System API establishes the connection with the database to retrieve the data from the database using Stored Procedure
9.	a) Generic SQL connection Exception b) On connection failure, return error message	If there is any connection failure during the step 5, the Oracle Exception is thrown by the service.
10.	On successful connection,retrieve the data of entries, components, sessions, qualifications and center from database.	After establishing successful DB connection, data of specific resource is retrieved from respective views.
11.	Return response	Returns the success response.

CI Direct Results

Resource : GET: /v1/businessStreams/02/sessions/{sessionId}/enquireServices

No	Steps	Description
1.	Input Request Message	The consumer invokes the mule services along with credentials (client id and client secret) and X-TRANSACTION-ID(A code to track API calls end to end) via Mule Soft Secure API layer with the proper query params
2.	Validate the user Credentials	Desktop user credentials are validated by the security API mule gateway layer
3.	If validation fails, service returns specific fault response	If validation fails, service returns specific fault response
4.	Send the request to Experience Layer API	The Mule soft experience API Experience layer validated users request query parameters will redirect to the specific system API.
5.	If resultDateType is equal to issue	The request is processed further to call SP dbo.CentreWiseEmbargoInfo
6.	If resultDateType is equal to release	The request is processed further to call SP dbo.Result_Release_Date_Validation
7.	If Validation fails, service returns specific fault response	If the request gets failed during the validation the exception is thrown by the System API to the Experience API secure layer.
8.	Fault message redirection by the User	When Experience API layer Fails then it returns error message to the consumers
9.	Connect to the database	System API establishes the connection with the database to retrieve the data from the database.
10.	a) SQLServer connection Exception b) On SQL Server connection failure, return error message	If there is any connection failure during the step 5, the SQL Exception is thrown by the service.
11.	On successful connection,retrieve the data of entries, components, sessions, qualifications and center from database.	After establishing successful DB connection, data of specific resource is retrieved from respective views.
12.	Return response	Returns the success response.

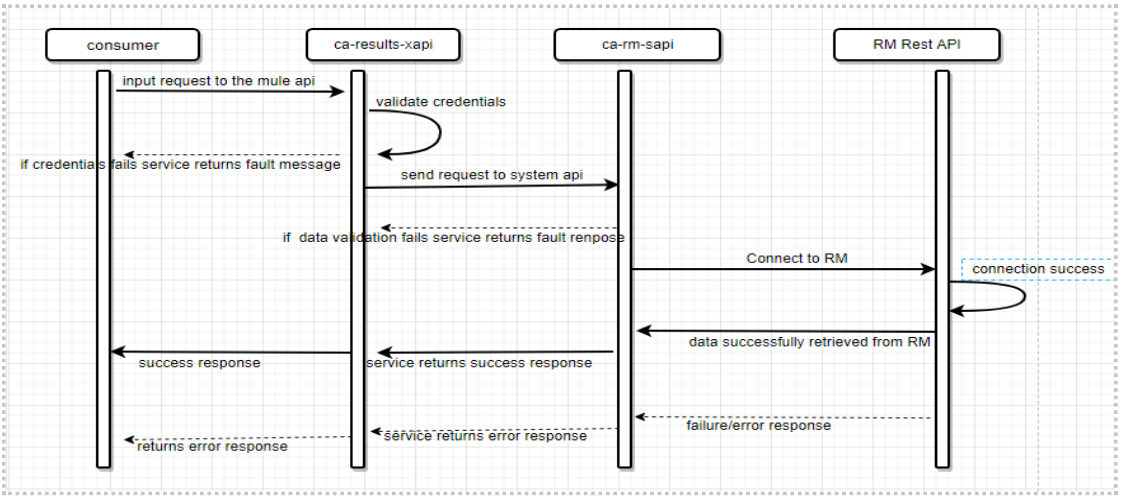

RM Post Scripts/ Get PDF

Resources

POST: \v1\candidates\scripts

GET: \v1\candidates\scripts\pdf(docStorePageId)

resources/image-d9f25f6f-8115-480e-b7be-f742d647f024.png

No	Steps	Description
1.	Input Request Message	The consumer invokes the mule services along with credentials (client id and client secret) and X-TRANSACTION-ID(A code to track API calls end to end) via Mule Soft Secure API layer with the proper query params
2.	Validate the user Credentials	Desktop user credentials are validated by the security API mule gateway layer
3.	If validation fails, service returns specific fault response	If validation fails, service returns specific fault response
4.	Send the request to specific Led layered api	The Mule soft experience API secure layer validated users request query parameters will redirect to the specific system API.
5.	Validate the request	The request is validated in the Mule System service API and if passed only then it is processed further to ca-eps-sapi
6.	If Validation fails, service returns specific fault response	If the request gets failed during the validation the exception is thrown by the System API to the Experience API secure layer.
7.	Fault message redirection by the User	When Experience API layer Fails then it returns error message to the consumers
8.	Successful call to System API	The request is processed further to call RM AUTH API
9.	If RM token is generated successfully	The request is processed further to call RM Post Scripts API
10.	Connect to the RM	System API establishes the connection with the RM to POST the data.
11.	Return response	Returns the success response.

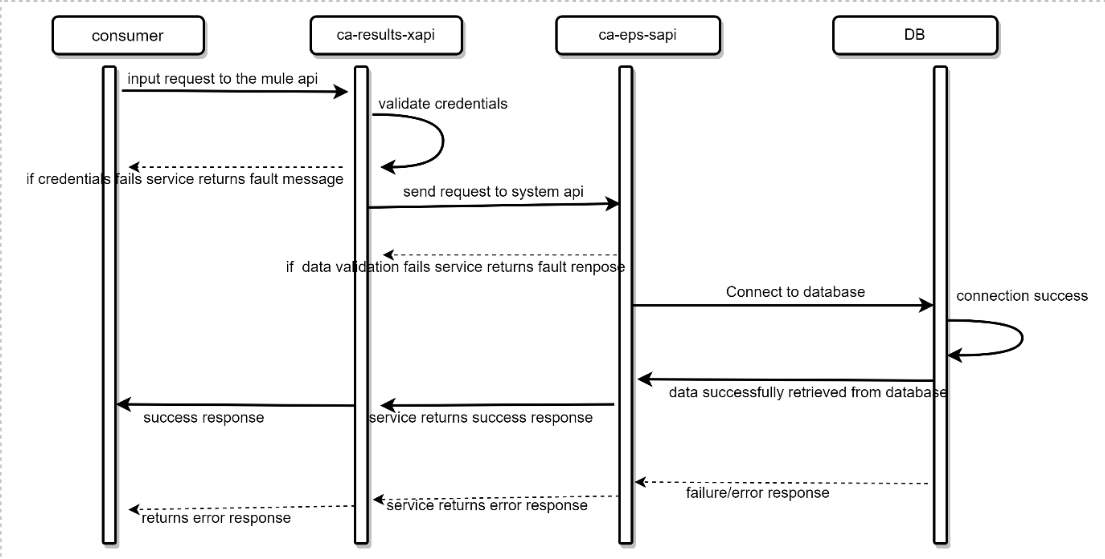

Get Issues Status from EPS

resources/image-03dbb5a5-96ce-464d-8521-1c620e2a08ba.png

Resource : GET: /v1/candidates/resultStatus/businessStream/{businessStreamId}/sessions/{sessionId}/centres/{centreId}/candidateNumber/{candidateNumber}/assessments/{assessmentCode}

No	Steps	Description
1.	Input Request Message	The consumer invokes the mule services along with credentials (client id and client secret) and X-TRANSACTION-ID(A code to track API calls end to end) via Mule Soft Secure API layer with the proper query params
2.	Validate the user Credentials	Desktop user credentials are validated by the security API mule gateway layer
3.	If validation fails, service returns specific fault response	If validation fails, service returns specific fault response
4.	Send the request to specific Led layered api	The Mule soft experience API secure layer validated users request query parameters will redirect to the specific system API.
5.	Validate the request	The request is validated in the Mule System service API and if passed only then it is processed further to ca-eps-sapi
6.	If Validation fails, service returns specific fault response	If the request gets failed during the validation the exception is thrown by the System API to the Experience API secure layer.
7.	Fault message redirection by the User	When Experience API layer Fails then it returns error message to the consumers
8.	Successful call to System API	The request is processed further to call RM AUTH API
9.	If token validation is successful	The request is processed further to call EPS GET Issued Status API
10.	Connect to the EPS DB	System API establishes the connection with the EPS to GET the data from SP.
11.	Return response	Returns the success response.

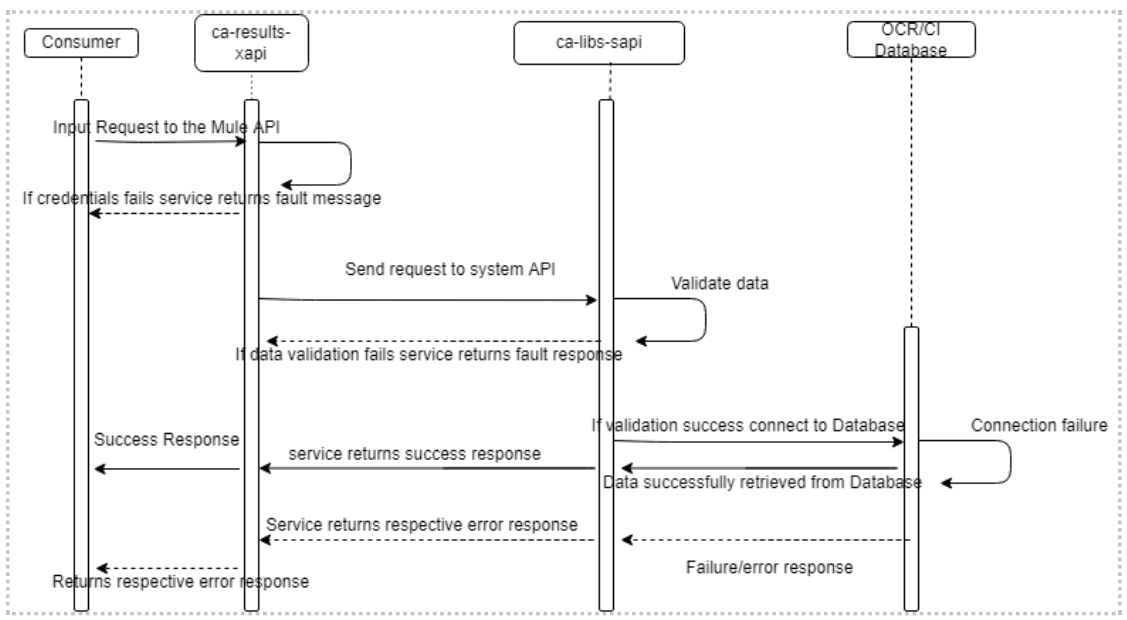

GET CI Results from LIBS

resources/image-177a8350-a188-4252-9d48-e9cbcd085dab.png

Resource : GET: /v1/businessStreams/02/qpIdentifiers

No	Steps	Description
1.	Input Request Message	The consumer invokes the mule services along with credentials (client id and client secret) and X-TRANSACTION-ID(A code to track API calls end to end) via Mule Soft Secure API layer with the proper query params
2.	Validate the user Credentials	Desktop user credentials are validated by the security API mule gateway layer
3.	If validation fails, service returns specific fault response	If validation fails, service returns specific fault response
4.	Send the request to specific Led layered api	The Mule soft experience API secure layer validated users request query parameters and uri parameters will redirect to the specific system API.
5.	Validate the request	The request is validated in the Mule System service API and if passed only then it is processed further to ca-eps-sapi
6.	If Validation fails, service returns specific fault response	If the request gets failed during the validation the exception is thrown by the System API to the Experience API secure layer.
7.	Fault message redirection by the User	When Experience API layer Fails then it returns error message to the consumers
8.	Connect to the database	System API establishes the connection with the database to retrieve the data from the database.
9.	a) Database connection Exception b) On Database connection failure, return error message	If there is any connection failure during the step 5, the Exception is thrown by the service.
10.	On successful connection,retrieve the data of entries, components, sessions, qualifications and center from database.	After establishing successful DB connection, data of specific resource is retrieved from respective views.
11.	Return response	Returns the success response.

Exception Handling:

Custom Error handler is used to handle API Kit errors as well as user defined errors.
HTTP endpoints have been configured with reconnection strategies with maximum of 2 retry attempts.

End Point details:

Results Experience API : /v1/businessStreams/{businessStreamId}/sessions/{sessionId}/enquireServices

	Topic	Details
1.	Operation Description	Retrieve results data from OCR/CI Direct Database
2.	URI	GET: /v1/businessStreams/{businessStreamId}/sessions/{sessionId}/enquireServices
3.	Interface Source	ATS Application
4.	Interface Target	ca-results-xapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPS
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-results-qa1/v1/businessStreams/01/sessions/3269/enquireServices?qualificationGroupId=1, https://apis-sandbox.cambridgeassessment.org.uk/ca-results-qa1/v1/businessStreams/02/sessions/16884/enquireServices?resultDateType=release&offset=0&limit=100¢reId=1126
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

Results Experience API : \v1\candidates\scripts

	Topic	Details
1.	Operation Description	Allows custmer to create the customerDirectives ATS request in RM
2.	URI	POST: \v1\candidates\scripts
3.	Interface Source	ATS Application
4.	Interface Target	ca-rm-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPS
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-results-qa1/v1/candidates/scripts
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

Results Experience API : \v1\candidates\scripts\pdf{docStorePageId}

	Topic	Details
1.	Operation Description	To Retrieve scripts from RM
2.	URI	GET: \v1\candidates\scripts\pdf{docStorePageId}
3.	Interface Source	ATS Application
4.	Interface Target	ca-rm-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPS
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-results-qa1/v1/candidates/scripts
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

Results Experience API : /v1/candidates/resultStatus/businessStream/{businessStreamId}/sessions/{sessionId}/centres/{centreId}/candidateNumber/{candidateNumber}/assessments/{assessmentCode}

	Topic	Details
1.	Operation Description	GET Result Issue status of Candidate from EPS
2.	URI	GET: /{version}/candidates/resultStatus/businessStream/{businessStreamId}/sessions/{sessionId}/centres/{centreId}/candidateNumber/{candidateNumber}/assessments/{assessmentCode}
3.	Interface Source	ATS Application
4.	Interface Target	ca-eps-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-results-qa1/v1/candidates/resultStatus/businessStream/02/sessions/14244/centres/04200/candidateNumber/1804/assessments/0500
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

Results Experience API : /v1/businessStreams/{businessStreamId}/qpIdentifiers

	Topic	Details
1.	Operation Description	Get the Question Paper details from LIBS for both CI & OCR
2.	URI	GET: /{version}/businessStreams/{businessStreamId}/qpIdentifiers
3.	Interface Source	ATS Application
4.	Interface Target	ca-libs-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPS
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-libs-sapi-dev/api/v1/businessStreams/02/qpIdentifers?sessionId=19722&assessmentCode=9239&assessmentVersion=4&componentId=03
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

Results Experience API : v1/businessStream/{businessStreamId}/sessions/{sessionId}/centres/{centreId}/candidateNumber/{candidateNumber}/assessments/{assessmentCode}/components/{componentId}/resultEnquiryStatus

	Topic	Details
1.	Operation Description	Get the result enquiry status
2.	URI	GET: /{version}/businessStream/{businessStreamId}/sessions/{sessionId}/centres/{centreId}/candidateNumber/{candidateNumber}/assessments/{assessmentCode}/components/{componentId}/resultEnquiryStatus
3.	Interface Source	ATS Application
4.	Interface Target	ca-eps-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPS
7.	URL	http://apis-sandbox.cambridgeassessment.org.uk/ca-results-xapi-qa1/api/v1/businessStream/04/sessions/3229/centres/43319/candidateNumber/8129/assessments/R031/components/02/resultEnquiryStatus
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

Results Experience API : v1/businessStream/{businessStreamId}/sessions/{sessionId}/resultStatus

	Topic	Details
1.	Operation Description	Get the result status
2.	URI	GET: /{version}/businessStream/{businessStreamId}/sessions/{sessionId}/resultStatus
3.	Interface Source	ATS Application
4.	Interface Target	ca-eps-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPS
7.	URL	http://apis-sandbox.cambridgeassessment.org.uk/ca-results-xapi-qa1/api/v1/businessStream/04/sessions/3229/resultStatus
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply
