US Transcript API

(0 reviews)

API used for Grade Transcript Application

Overview:

Mule Soft API exposed to either retrieve or store information related to transcript data belonging to US students. Below is the list of end points exposed to store candidate, exam, transcripts and institutions related information.
Also Transcript costs, payment status, order summary and data related to centers, exam series and candidate results shall be retrieved

	API Method	REST Endpoint	Description	Consumers
1.	POST	/{version}/candidates	Stores the candidate personal information in DB	Grade Transcript service
2.	POST	/{version}/qualifications	Stores the Exam Details in DB	Grade Transcript service
3.	POST	/{version}/institutions	Stores the Institution Details in DB	Grade Transcript service
4.	POST	/{version}/transcripts	Stores the transcripts Details in DB	Grade Transcript service
5.	GET	/{version}/transcripts/costs	Retrieves the transcripts service costs	Grade Transcript service
6.	POST	/{version}/transcripts/costs	Creates new transcripts service costs	Grade Transcript service
7.	PUT	/{version}/transcripts/costs	Updates existing transcripts service costs	Grade Transcript service
8.	PUT	/{version}/transcripts/applicationStatus	Update the transcripts application payment status	Grade Transcript service
9.	GET	/{version}/transcripts/orderSummary	Retrieves the transcripts order summary	Grade Transcript service
10.	GET	/{version}/examseries	Retrieves the exam series data from SNAPI Database	Grade Transcript service
11.	GET	/{version}/institutions	Retrieves the Institutions data from SNAPI Database	Grade Transcript service
12.	GET	/{version}/centres	Retrieves the centres data from SNAPI Database	Grade Transcript service
13.	GET	/{version}/candidateResults	Retrieves the candidates results data from SNAPI Database	Grade Transcript service
14.	POST	/{version}/gradeScores	Creates new transcripts grades table in Db to store the values posted by appian	Grade Transcript service
15.	GET	/{version}/candidates/{applicationReferenceNumber}/scores	Retrieves the Candidate Scores data from SNAPI Database	Grade Transcript service
16.	POST	/{version}/candidates/{applicationReferenceNumber}/terms	Stores Terms and Condition Details in DB	Grade Transcript service
17.	GET	/{version}/creditPolicy/{InstituteId}/terms	Retrieves credit details for a particular institute Id	Grade Transcript service
18.	GET	/{version}/terms	Retrieves Terms and conditions in HTML format	Grade Transcript service
19.	GET	/{version}/candidates/gradeChanges	Retrieves Grade changes	Grade Transcript service
20.	GET	/{version}/candidates/{uid}/orders	Retrieves the Candidate Order Details	Grade Transcript service
21.	POST	/{version}/transcripts/validatePaymentDue	Validate if Payment due date breached or not	Grade Transcript service

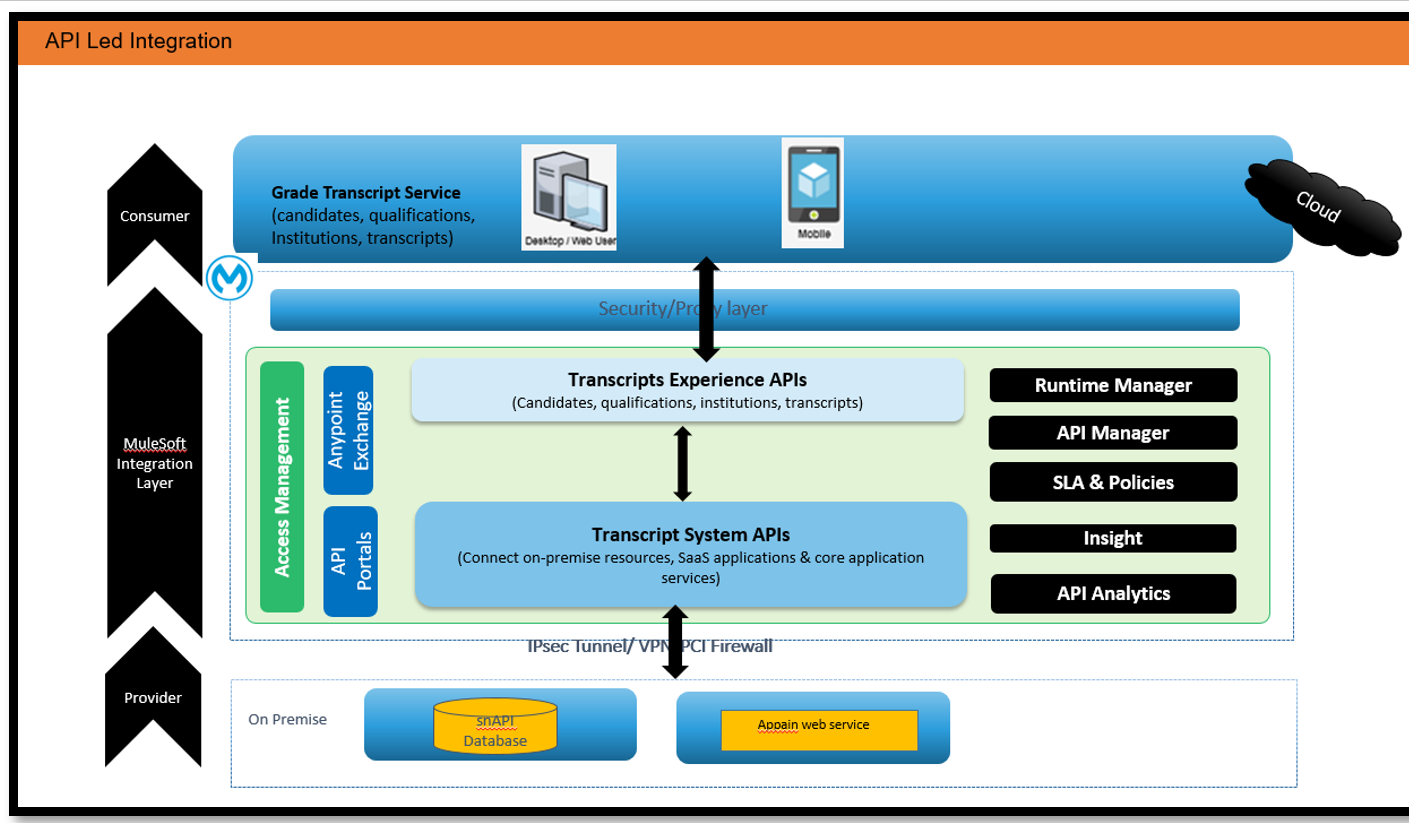

Integration architecture:

resources/Us-transcripts-e77c611f-dbaf-433b-b6ad-f2683f668b28.png

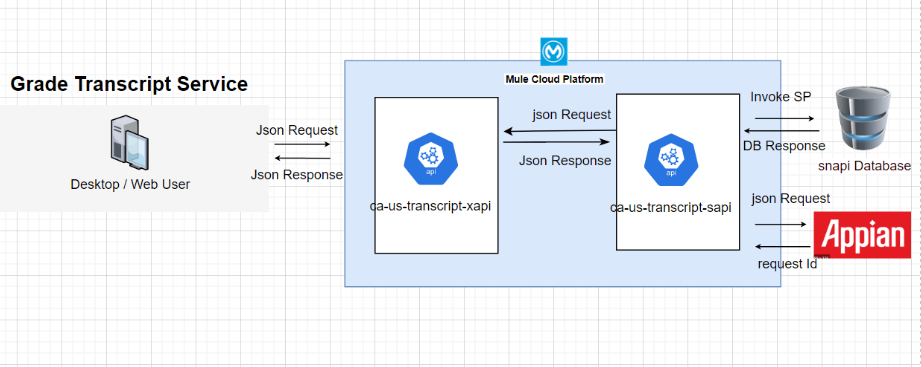

1. Flow Diagram and Description:

GTS application send the request to Mule API to perform requested operations and data would be stored/retrieved from SNAPI database accordingly.

resources/ustran-f3364319-ed04-4cf3-8883-5f7685fda3ac.PNG

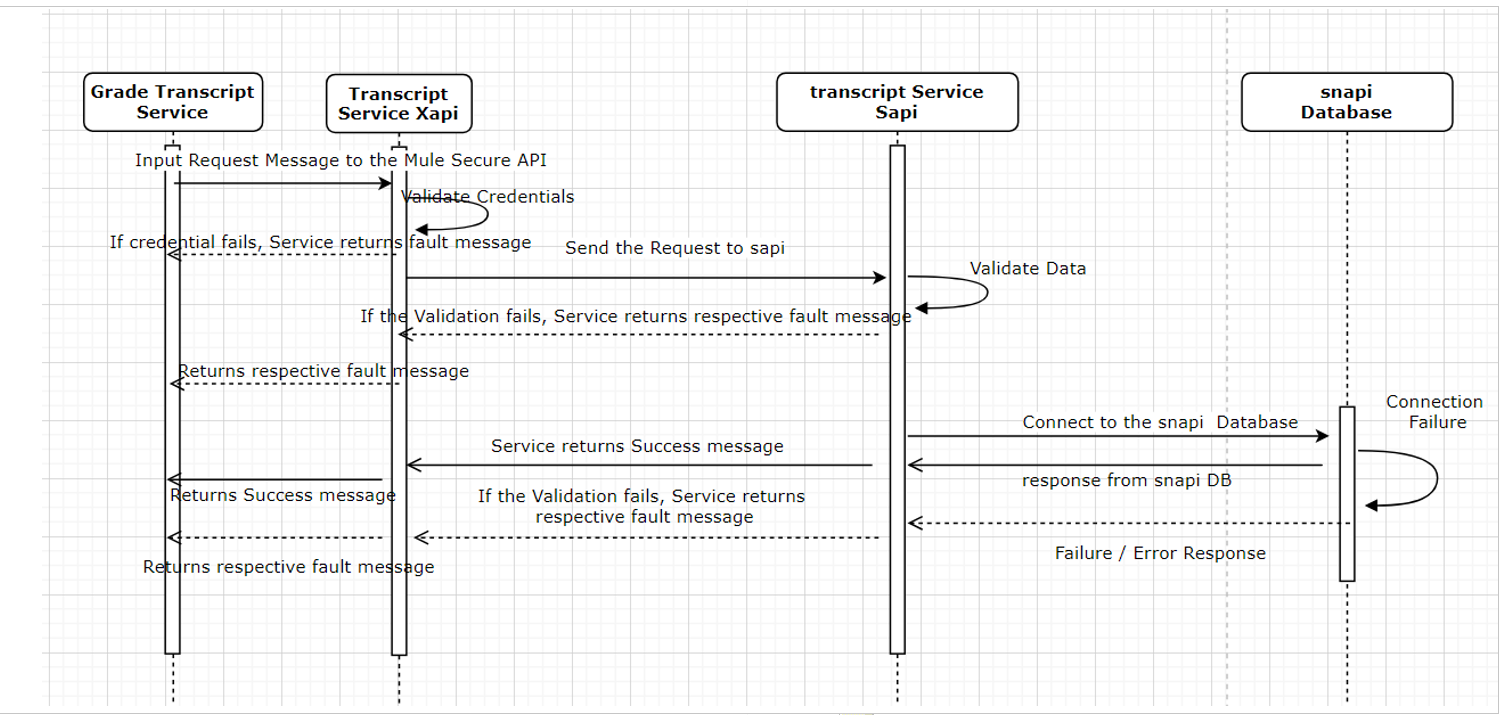

Sequence Diagram and Description:

No.	Steps	Description
1.	Input Request Message	The US grade transcript service invokes the mule services along with credentials (client id and client secret) and X-TRANSACTION-ID(A code to track API calls end to end) via Mule Soft Secure API layer with the proper request.
2	Validate the user Credentials	Desktop user credentials are validated by the security API mule gateway layer
3.	If Validation fails, service returns specific fault response	If Validation fails, service returns specific fault response
4.	Send the request to specific layered API	The Mule soft experience API secure layer validated users request query parameters will redirect to the specific Process API.
5.	Validate the request	The request is validated in the Mule System service API and if passed only then it is processed further to step 8 (ca-us-transcript-sapi,ca-mdm-sapi) based on operation.
6.	If Validation fails, service returns specific fault response	If the request gets failed during the validation the exception is thrown by the Process API to the Experience API secure layer.
7.	Fault message redirection by the User	When Experience API layer Fails then it returns error message to the consumers
8.	Connect to the database	System API establishes the connection with the database to store the data.
9.	Oracle/SQL connection Exception	If there is any connection failure during the step 5, the Oracle/SQL Exception is thrown by the service.
10.	On successful connection, store the data of candidate info, exam and qualifications data to database.	After establishing successful DB connection, data of specific resource is stored in respective data base it will processed further to step 15.
11.	Prepare response	Once the data is service call successfully, the Mule API prepares the Success response.
12.	Return response	Returns the success response.

resources/us-transcript-seq-3d532566-0c57-4e89-9036-8b71c7b52458.png

Exception Handling:

Custom Error handler is used to handle API Kit errors as well as user defined errors.
HTTP endpoints have been configured with reconnection strategies with maximum of 2 retry attempts.

End Point details:

US Transcript Experience API : api/v1/candidates

	Topic	Details
1.	Operation Description	Create the candidate data in SNAPI DB
2.	URI	POST: api/v1/candidates
3.	Interface Source	Grade Transcript service
4.	Interface Target	ca-us-transcript-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/candidates
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/qualifications

	Topic	Details
1.	Operation Description	Create the Candidate Exam data in SNAPI DB
2.	URI	POST: api/v1/qualifications
3.	Interface Source	Grade Transcript service
4.	Interface Target	ca-us-transcript-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/qualifications
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/institutions

	Topic	Details
1.	Operation Description	Create the candidates institution data in SNAPI DB
2.	URI	POST: api/v1/institutions
3.	Interface Source	Grade Transcript service
4.	Interface Target	ca-us-transcript-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/institutions
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/transcripts

	Topic	Details
1.	Operation Description	Create the transcript data in SNAPI DB
2.	URI	POST: api/v1/transcripts
3.	Interface Source	Grade Transcript service
4.	Interface Target	Appian web API
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/transcripts
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/transcripts/costs

	Topic	Details
1.	Operation Description	Retrieves the transcript cost details
2.	URI	GET: api/v1/transcripts/costs
3.	Interface Source	Grade Transcript service
4.	Interface Target	ca-us-transcript-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/transcripts/costs
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/transcripts/costs

	Topic	Details
1.	Operation Description	Creates new transcript cost details
2.	URI	POST: api/v1/transcripts/costs
3.	Interface Source	Grade Transcript service
4.	Interface Target	ca-us-transcript-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/transcripts/costs
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/transcripts/costs

	Topic	Details
1.	Operation Description	Updates existing transcript cost details
2.	URI	PUT: api/v1/transcripts/costs
3.	Interface Source	Grade Transcript service
4.	Interface Target	ca-us-transcript-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/transcripts/costs
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/transcripts/applicationStatus

	Topic	Details
1.	Operation Description	Updates payment status of Transcript application
2.	URI	PUT: api/v1/transcripts/applicationStatus
3.	Interface Source	Grade Transcript service
4.	Interface Target	ca-us-transcript-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/transcripts/applicationStatus
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/transcripts/orderSummary

	Topic	Details
1.	Operation Description	Retrieves order summary of transcript application
2.	URI	GET: api/v1/transcripts/orderSummary
3.	Interface Source	Grade Transcript service
4.	Interface Target	ca-us-transcript-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/transcripts/orderSummary
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/examseries

	Topic	Details
1.	Operation Description	Retrieves the examseries data from SNAPI DB
2.	URI	GET: api/v1/examseries
3.	Interface Source	Grade Transcript service
4.	Interface Target	ca-us-transcript-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/examseries
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/institutions

	Topic	Details
1.	Operation Description	Retrieves the institutions data from SNAPI DB
2.	URI	GET: api/v1/institutions
3.	Interface Source	Grade Transcript service
4.	Interface Target	ca-us-transcript-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/institutions
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/centres

	Topic	Details
1.	Operation Description	Retrieves the centres data from SNAPI DB
2.	URI	GET: api/v1/centres
3.	Interface Source	Grade Transcript service
4.	Interface Target	ca-us-transcript-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/centres
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/candidateResults

	Topic	Details
1.	Operation Description	Retrieves the candidate results data from SNAPI DB
2.	URI	GET: api/v1/candidateResults
3.	Interface Source	Grade Transcript service
4.	Interface Target	ca-us-transcript-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/candidateResults
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/gradeScores

	Topic	Details
1.	Operation Description	Creates new transcripts grades table in Db to store the values posted by appian
2.	URI	POST: api/v1/gradeScores
3.	Interface Source	Grade Transcript service
4.	Interface Target	ca-us-transcript-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/gradeScores
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/candidates/{applicationReferenceNumber}/scores

	Topic	Details
1.	Operation Description	Retrieves the Candidate Scores data from SNAPI DB
2.	URI	POST: api/v1/candidates/{applicationReferenceNumber}/scores
3.	Interface Source	Grade Transcript service
4.	Interface Target	ca-us-transcript-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/candidates/{applicationReferenceNumber}/scores
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/candidates/{applicationReferenceNumber}/terms

	Topic	Details
1.	Operation Description	Stores Terms and Condition Details in DB
2.	URI	POST: api/v1/candidates/{applicationReferenceNumber}/terms
3.	Interface Source	Grade Transcript service
4.	Interface Target	ca-us-transcript-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/candidates/{applicationReferenceNumber}/terms
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/candidates/{uid}/orders

	Topic	Details
1.	Operation Description	Retrieves the Candidate Order Details
2.	URI	POST: api/v1/candidates/{uid}/orders
3.	Interface Source	Grade Transcript service
4.	Interface Target	ca-us-transcript-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/candidates/{uid}/orders
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/creditPolicy/{InstituteId}

	Topic	Details
1.	Operation Description	Retrieves credit details for a particular institute Id
2.	URI	GET: api/v1/creditPolicy/{InstituteId}
3.	Interface Source	Grade Transcript service
4.	Interface Target	ca-mdm-sapi
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/creditPolicy/{InstituteId}
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/terms

	Topic	Details
1.	Operation Description	Retrieves Terms and conditions in HTML
2.	URI	GET: api/v1/terms
3.	Interface Source	Grade Transcript service
4.	Interface Target	NA
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/terms
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/candidates/gradeChanges

	Topic	Details
1.	Operation Description	Retrieves Grade changes
2.	URI	GET: api/v1/candidates/gradeChanges
3.	Interface Source	Grade Transcript service
4.	Interface Target	NA
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/candidates/gradeChanges
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

US Transcript Experience API : api/v1/transcripts/validatePaymentDue

	Topic	Details
1.	Operation Description	Validate if Payment due date breached or not
2.	URI	POST: api/v1/transcripts/validatePaymentDue
3.	Interface Source	Grade Transcript service
4.	Interface Target	NA
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPs
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/ca-us-transcript-xapi-qa1/api/v1/transcripts/validatePaymentDue
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

home

Overview:

End Point details:

Reviews
