Inspera QP Webhook Experience API

Inspera QP Webhook is act as a proxy to connect inspera so that Consumers can consume the API securely.

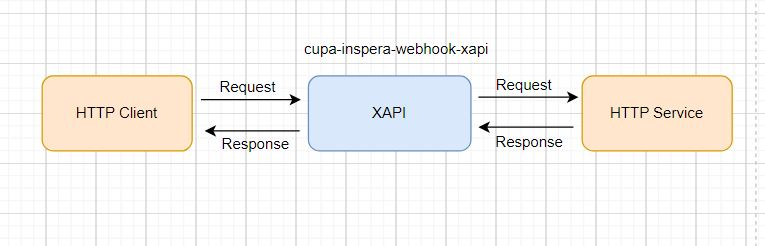

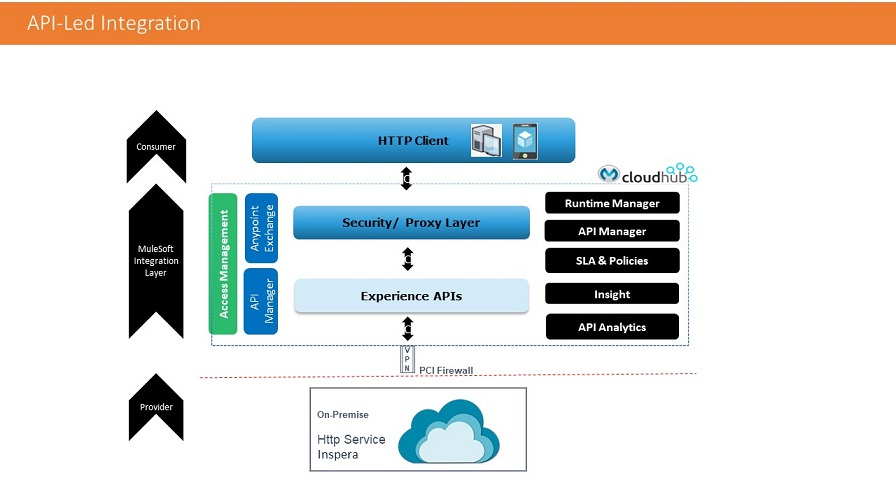

Architecture Diagram:

resources/image-9aa26bd9-37c4-4d51-b991-6f0aae5df0db.png

resources/image-eca427e2-9b83-4471-8602-bae39f494688.png

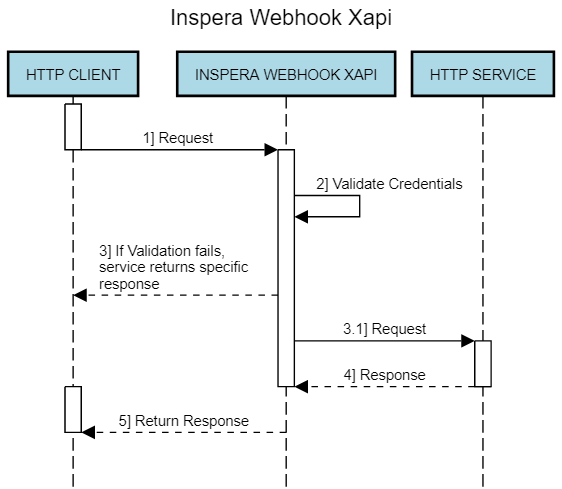

Sequence Diagram:

resources/image-50a1af4d-f91a-4374-ad16-4640771d71ff.png

Sequence Diagram Description:

No.	Steps	Description
1.	Request	Http Client invokes the mule services along with credentials (client id and client secret) in query params and X-TRANSACTION-ID (A code to track API calls end to end) via Mule Soft Secure API layer
2.	Validate Credentials	Client id and Client secret credentials are validated by the security API mule gateway layer
3.	If Validation fails, service returns specific fault response	If Validation fails, service returns specific fault response
4.	Request	Request forward and behave like a passthrough API
5.	Response	Response from Inspera
6.	Return Response	Returns the success response.

Endpoints:

1. Health Check

GET: /status

To check the health of the API.

	Topic	Details
1.	Operation Description	Check the current status of API
2.	URI	/api/v1/status
3.	Method	GET
4.	Response	{ "application": "cupa-inspera-webhook-xapi", "version": "v1", "environment": "dev", "status": "Running", "timestamp": "2023-02-02T07:41:43.227Z+00:00" }
5.	Synchronous/Asynchronous	Synchronous
6.	Protocol	HTTPS
7.	URL	https://apis-sandbox.cambridgeassessment.org.uk/cupa-inspera-webhook-xapi-dev/api/v1/status
8.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
9.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

2. To Post Revision Status

POST: /revision/notification

This endpoint to post revision status, payload in below format.

{
    "event": "revision_status_updated",
    "marketplaceId": 123456,
    "contextObjectId": 123456,
    "contextObjectType": "qti_section",
    "triggeringUserId": 123456,
    "triggeringUserName": "abc",
    "timestamp": "2021-11-17T19:53:52Z",
    "extraInfo": {
        "values": {
            "jobId": 123
        },
        "type": "String",
        "value": "live",
        "previousValue": "draft"
    }
}

	Topic	Details
1.	Operation Description	To post revision status
2.	URI	/v1/revision/notification
3.	Method	Post
6.	Synchronous/ Asynchronous	Synchronous
7.	Protocol	HTTPS
8.	URL	https://apis-sandbox.cambridgeassessment.org.uk/cupa-inspera-webhook-xapi-dev/api/v1/revision/notification/
9.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
10.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

3. To Post Submission Notification

POST: /submission/notification

This endpoint is used to post submission notification details to non mule system , payload in below format.

{
    "event": "submission_delivered",
    "marketplaceId": 53856877,
    "contextObjectId": 137705108,
    "contextObjectType": "ASSESSMENT_RUN",
    "associatedObjectId": 137705307,
    "associatedObjectType": "candidate",
    "triggeringUserId": 137705307,
    "triggeringUserName": "ANONYMOUS USER",
    "timestamp": 1675346760000,
    "extraInfo": {
        "type": "JSON",
        "value": {
            "contextObjectExternalId": null,
            "lastUpdated": null,
            "presignedUrl": null,
            "jobId": null
        }
    },
    "orderId": null
}

	Topic	Details
1.	Operation Description	To Post Submission Notification
2.	URI	/v1/submission notification
3.	Method	POST
6.	Synchronous/ Asynchronous	Synchronous
7.	Protocol	HTTPS
8.	URL	https://apis-sandbox.cambridgeassessment.org.uk/cupa-inspera-webhook-xapi-dev/api/v1/submission notification
9.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
10.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

4. To Post ELIT Response Notification

POST: /elitresponse/notification

This endpoint is used to post ELIT response notification details to non mule system , payload in below format.

{
    "status": "success",
    "results": {
        "parts": [
            {
                "part": 1,
                "status": "success",
                "answers": [
                    {
                        "id": "{answerid}",
                        "grader-results": [
                            {
                                "grader-id": 1,
                                "results": {
                                    "overall": 8.34
                                }
                            }
                        ]
                    }
                ]
            }
        ]
    }
}

	Topic	Details
1.	Operation Description	To Post ELIT Response Notification
2.	URI	/v1/elitresponse/notification
3.	Method	POST
6.	Synchronous/ Asynchronous	Synchronous
7.	Protocol	HTTPS
8.	URL	https://apis-sandbox.cambridgeassessment.org.uk/cupa-inspera-webhook-xapi-dev/api/v1/elitresponse/notification
9.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
10.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply

5. To Post LOFT Notification

POST: /notification/loft

This endpoint is used to post notification loft details to non mule system , payload in below format.

{
}

	Topic	Details
1.	Operation Description	To Post LOFT Notification
2.	URI	/v1/notification/loft
3.	Method	POST
6.	Synchronous/ Asynchronous	Synchronous
7.	Protocol	HTTPS
8.	URL	https://apis-sandbox.cambridgeassessment.org.uk/cupa-inspera-webhook-xapi-dev/api/v1/notification/loft
9.	Mode of Communication	☐ Batch ☐ Message ☒ Real Time
10.	Interface Pattern	☐ Publish / Subscribe ☒ Request / Reply
