MuleSoft Connector🔌 Playground

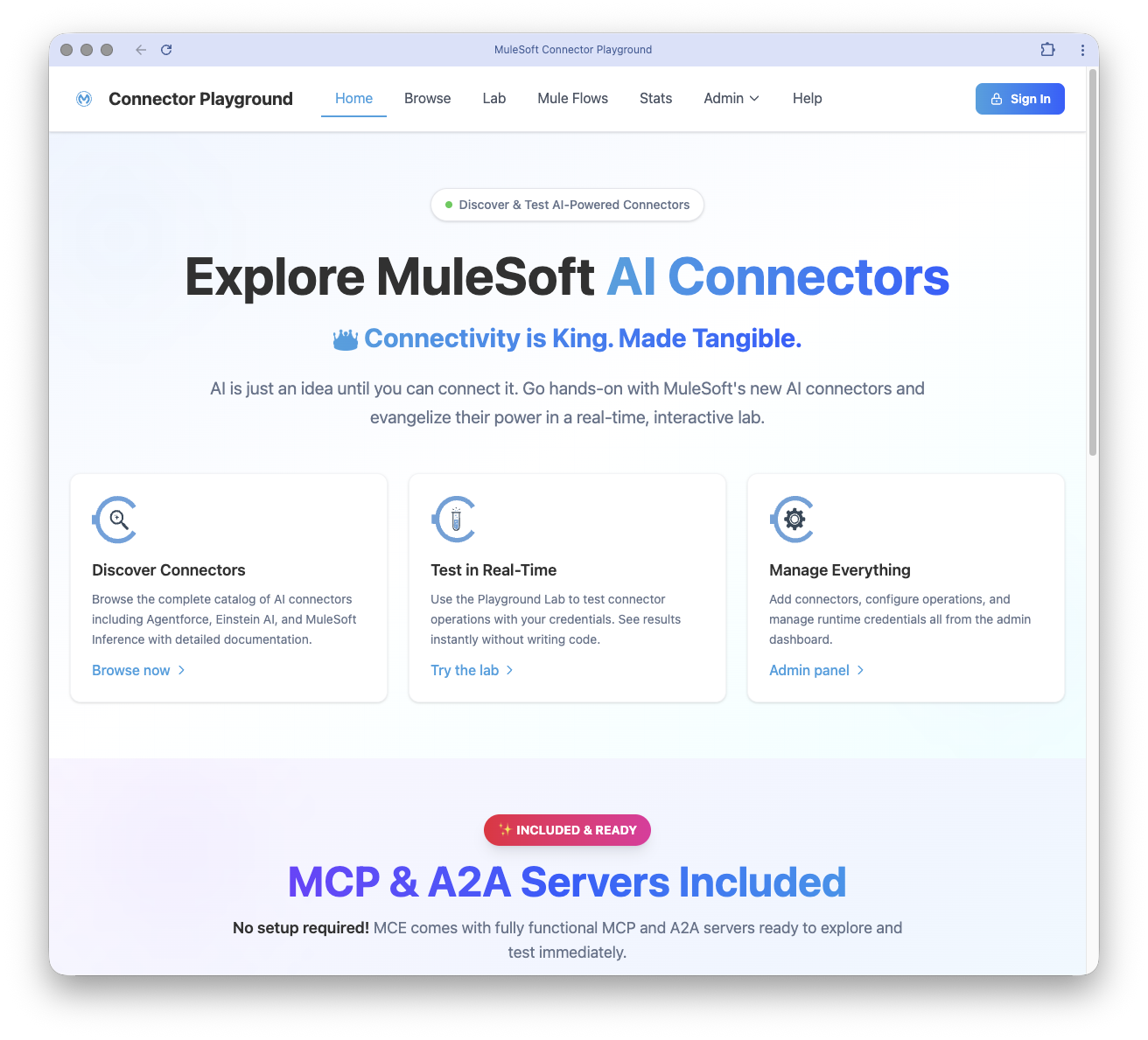

Once Registered, jump into the App here: MuleSoft Connector Playground 🚀

Overview and Purpose of the API

The MuleSoft Connector Playground API is a runtime API designed for exploring and executing MuleSoft Connectors through a web interface. It provides a comprehensive platform for:

• Connector Discovery: Browse available connectors, operations, and parameters.
• Configuration Management: Create and manage runtime configurations for connectors.
• Connector Execution: Execute connector operations with dynamic parameters.
• Metadata Access: Retrieve configuration types and providers for UI form generation.

This API is designed to serve a Vue.js frontend and supports deployment on both CloudHub and Local Development Environments.

Authentication Requirements and Security Details

The API supports the following authentication mechanisms:

1. Basic Authentication:

   • Used for securing endpoints with client ID enforcement.
   • Reference: Basic Authentication.

2. Reset Token:

   • Required for destructive operations like database reset.
   • Header: X-Reset-Token.

Base URL and Environments

Base URL

• Local Development: http://localhost:8081
• CloudHub Deployment: https://{app-name}.cloudhub.io

Environment Variables

• app-name: The name of the CloudHub application. Default: mulesoft-connector-playground.

Detailed Endpoint Documentation

1. List All Connectors

GET /connectors

Description

Retrieves a list of all connectors in the system with optional filtering by activation status.

Query Parameters

Responses

• 200 OK: Successfully retrieved the list of connectors.
  • Headers:
    • X-Total-Count: Total number of connectors returned.
  • Body (application/json):[{"id": 1,"mavenArtifactId": "example-connector","name": "Example Connector","version": "1.0.0","category": "AI","description": "A sample connector","docUrl": "https://example.com/docs","icon": "https://example.com/icon.png","isActive": true,"operationCount": 5,"createdAt": "2023-01-01T00:00:00Z","updatedAt": "2023-01-02T00:00:00Z"}]
• 400 Bad Request: Invalid query parameter value.
• 500 Internal Server Error: Server error.

2. Create a New Connector

POST /connectors

Description

Creates a new connector in the catalog.

Request Body

Example Request

{
  "mavenArtifactId": "example-connector",
  "name": "Example Connector",
  "version": "1.0.0",
  "category": "AI",
  "description": "A sample connector",
  "docUrl": "https://example.com/docs",
  "icon": "https://example.com/icon.png",
  "isActive": true
}

Responses

• 201 Created: Successfully created the connector.
  • Headers:
    • Location: URL of the newly created connector.
  • Body (application/json):{"id": 1,"mavenArtifactId": "example-connector","name": "Example Connector","version": "1.0.0","category": "AI","description": "A sample connector","docUrl": "https://example.com/docs","icon": "https://example.com/icon.png","isActive": true,"createdAt": "2023-01-01T00:00:00Z","updatedAt": "2023-01-01T00:00:00Z"}
• 400 Bad Request: Invalid request body.
• 409 Conflict: Resource conflict (e.g., duplicate name).
• 500 Internal Server Error: Server error.

3. Get Connector Details

GET /connectors/{connectorId}

Description

Retrieves complete details for a specific connector, including operations, parameters, configuration types, and providers.

Path Parameters

Responses

• 200 OK: Successfully retrieved connector details.
  • Body (application/json):{"id": 1,"mavenArtifactId": "example-connector","name": "Example Connector","version": "1.0.0","category": "AI","description": "A sample connector","docUrl": "https://example.com/docs","icon": "https://example.com/icon.png","isActive": true,"operations": [{"id": 1,"operationKey": "example-operation","displayName": "Example Operation","description": "An example operation","category": "General","isActive": true}],"configTypes": [{"id": 1,"configTypeKey": "example-config","displayName": "Example Config","description": "An example configuration type"}]}
• 404 Not Found: Connector not found.
• 500 Internal Server Error: Server error.

4. Update Connector

PUT /connectors/{connectorId}

Description

Updates an existing connector's metadata (e.g., name, version, description). Can also activate/deactivate the connector.

Path Parameters

Request Body

Example Request

{
  "name": "Updated Connector",
  "version": "1.1.0",
  "category": "AI",
  "description": "An updated connector",
  "docUrl": "https://example.com/docs",
  "icon": "https://example.com/icon.png",
  "isActive": true
}

Responses

• 200 OK: Successfully updated the connector.
  • Body (application/json):{"id": 1,"mavenArtifactId": "example-connector","name": "Updated Connector","version": "1.1.0","category": "AI","description": "An updated connector","docUrl": "https://example.com/docs","icon": "https://example.com/icon.png","isActive": true,"createdAt": "2023-01-01T00:00:00Z","updatedAt": "2023-01-02T00:00:00Z"}
• 400 Bad Request: Invalid request body.
• 404 Not Found: Connector not found.
• 500 Internal Server Error: Server error.

5. Delete Connector

DELETE /connectors/{connectorId}

Description

Permanently deletes a connector and all associated operations, parameters, and configuration types. This operation cannot be undone.

Path Parameters

Responses

• 204 No Content: Successfully deleted the connector.
• 404 Not Found: Connector not found.
• 500 Internal Server Error: Server error.

Error Handling and Status Codes

The API adheres to RFC 9457 Problem Details for HTTP APIs for error responses. Common status codes include:

• 200 OK: Successful operation.
• 201 Created: Resource successfully created.
• 204 No Content: Resource successfully deleted.
• 400 Bad Request: Invalid request or query parameter.
• 404 Not Found: Resource not found.
• 409 Conflict: Resource conflict (e.g., duplicate name).
• 500 Internal Server Error: Unexpected server error.

Best Practices for Implementation

• Authentication: Use the appropriate authentication mechanism (Basic Auth or Reset Token) for secure access.
• Error Handling: Implement robust error handling based on the provided status codes and error details.
• Pagination: Use pagination parameters (limit, offset) for endpoints returning large datasets.
• Validation: Ensure all required fields are provided in requests to avoid validation errors.

Sample Code Snippets

Example: Fetch All Connectors

const axios = require('axios');

async function fetchConnectors() {
  try {
    const response = await axios.get('http://localhost:8081/connectors', {
      params: { filter: 'active' },
      auth: { username: 'client_id', password: 'client_secret' }
    });
    console.log(response.data);
  } catch (error) {
    console.error(error.response.data);
  }
}

fetchConnectors();

Example: Create a Connector

const axios = require('axios');

async function createConnector() {
  try {
    const response = await axios.post(
      'http://localhost:8081/connectors',
      {
        mavenArtifactId: 'example-connector',
        name: 'Example Connector',
        version: '1.0.0',
        category: 'AI',
        description: 'A sample connector',
        isActive: true
      },
      {
        auth: { username: 'client_id', password: 'client_secret' }
      }
    );
    console.log(response.data);
  } catch (error) {
    console.error(error.response.data);
  }
}

createConnector();

This documentation provides a comprehensive guide to the MuleSoft Connector Playground API, ensuring developers can effectively integrate and utilize its features.
