tp-exp-api

API Specification:

• This is a common experience layer API that shall be able to route the traffic to all of the process and system layer APIs.
• All external clients must invoke this api in order to perform operations to any of the underlying endpoints or resources. A number of security policies will be applied on experience api, including but not limited to clientIdEnforcement, IP Whitelisting and Rate Limiting policy.
• All hosted endpoints and resources are listed below and can be invoked individually. As part of the documentation, each API has a sample request and response payload along with specific success and error codes.
• The caller must adhere to the minimum header requirements, as of now, it is required to pass following headers:
  • client_id
  • client_secret
  • x-correlation-id
• Each caller/client shall receive a specific set of clientID/clientSecret. It is important to ensure that clientID/clientSecret shall not be shared beyond that paerticular client.
• Details related to endpoint specific URI Parameters / Query Parameters or headers are listed under each endpoint and shall be referenced before making the call.
• A mocking API is hosted against every endpoint and the url can be found on resource/endpoint specific page. It is recommended that the mocking url is used for testing purposes.

Authentication and Authorization:

Clients calling TruckPro Inventory API are managed in the Mulesoft Cloudhub. Calls through the API gateway to TruckPro Inventory API must have a valid client id and client secret.

All request and response body entities are composed in JSON.

Common Response Codes:

The following error codes apply to all API endpoints. See the API documentation for a complete list of the error codes and response bodies that can be expected on each endpoint.

200 - Returns the success based on the input request

401 - Client Id or client secret is no longer valid. The response body has the details.

5XX - There was a server error. The response body has the details.

List of endpoints:

below is the list of all the endpoints that are exposed through this portal.

Notice: In order to maintain consistancy, the URL links are replaced with Navigation Path. The navigation path can be referred from the left pane of this page. An example below.

Example:

• Post Order API:
  • Navigation Path: Endpoints -> /order -> Post

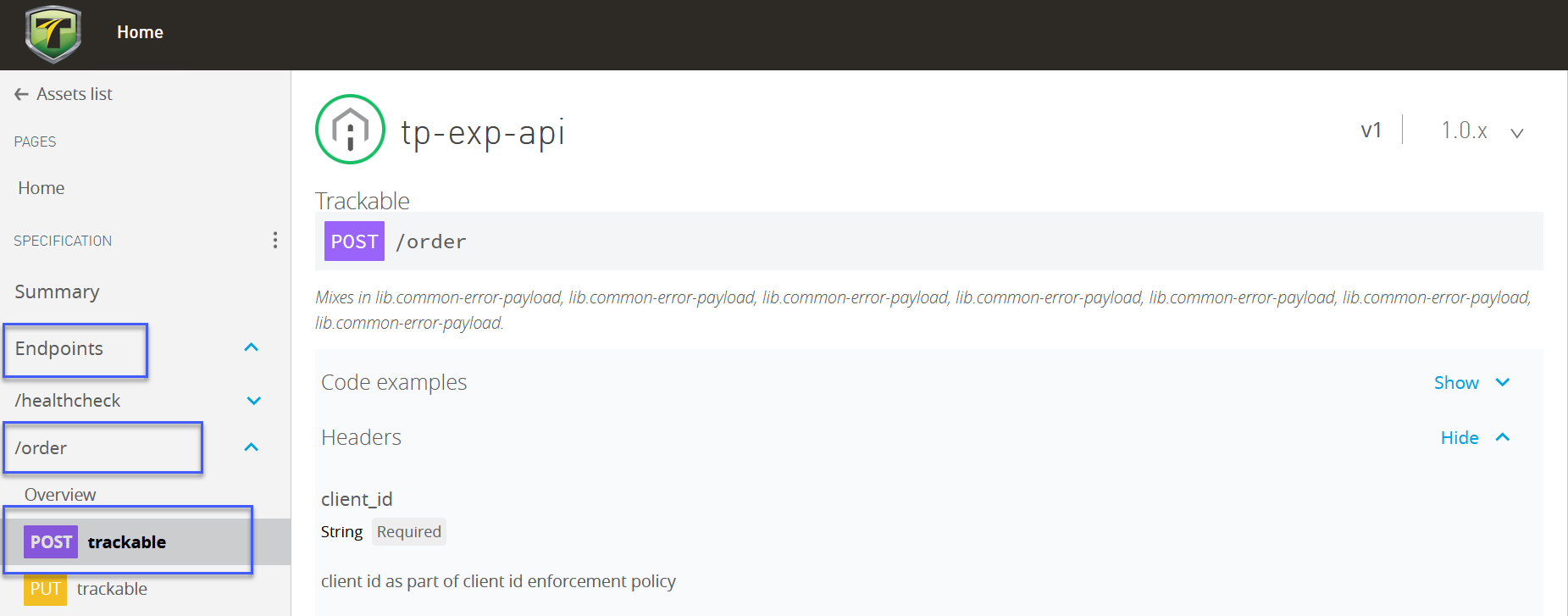

  • Navigation Screenshot: below

Order API:

• Post Order: this api can be invoked for creating order.
  • Method: Post
  • Navigation Path: Endpoints -> /order -> Post
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/order
• Update Order: this api can be invoked for updating and/or canceling order.
  • Method: Put
  • Navigation Path: Endpoints -> /order-> Put
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/order
• Order Summary By Customer Number: this api can be invoked to retrieve order summary by using customer number.
  • Method: Get
  • Navigation Path: Endpoints -> /order-> /orderSummary -> /customerNumber/{customerNumber} -> Get
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/order/orderSummary/customerNumber/{customerNumber}
• Order History By Order Number: this api can be invoked to retrieve order summary by using customer number.
  • Method: Get
  • Navigation Path: Endpoints -> /order-> /orderHistory-> /{orderNumber}/orderNumber -> Get
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/order/orderHistory/{orderNumber}/orderNumber
• Order Fulfillment: this api can be invoked to determine which store can fulfill the order
  • Method: Post
  • Navigation Path: Endpoints -> /order-> /fufillment-> Post
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/order/fulfillment
• Order Invoice: this api can be invoked to get order invoice in base64 encoding format
  • Method: Get
  • Navigation Path: Endpoints -> /order-> /invoice -> Get
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/order/invoice

Customer Profile API:

• Customer Profile by Master Account Number: this api can be invoked to retrieve customer account details by using master account number.
  • Method: Get
  • Navigation Path: Endpoints -> customers -> /masteraccount/{master-account-number} -> Get
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/customers/masteraccount/{master-account-number}
• Customer Profile by Customer Account Number: this api can be invoked to retrieve customer account details by using customer account number.
  • Method: Get
  • Navigation Path: Endpoints -> customers -> /customeraccount/{customer-account-number} -> Get
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/customers/customeraccount/{customer-account-number}

Store API (aka Organization API):

• Store Detail By Store Number: this api can be invoked to retrieve store details by using store number.
  • Method: Get
  • Navigation Path: Endpoints -> stores -> /details/{storeNumber} -> Get
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/stores/details/{storeNumber}
• Store Locator: this api can be invoked to locate store by providing postal code, latitude, longitude and radius.
  • Method: Get
  • Navigation Path: Endpoints -> stores -> /locator -> Get
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/stores/locator

Address Verification API:

• Address Verification: this api can be invoked to validate an address.
  • Method: Post
  • Navigation Path: Endpoints -> /address/verification -> Post
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/address/verification

Tax API:

• Tax Certificate: this api can be invoked create a tax certificate record in tax system.
  • Method: Post
  • Navigation Path: Endpoints -> /customersTax -> /certificate -> Post
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/customersTax/certificate
• Create Customer in Tax System: this api can be invoked create a customer tax record in tax system.
  • Method: Post
  • Navigation Path: Endpoints -> /customersTax -> Post
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/customersTax
• Update Customer in Tax System: this api can be invoked update a customer tax record in tax system.
  • Method: Put
  • Navigation Path: Endpoints -> /customersTax -> Put
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/customersTax

Email Notification:

• Email Notification: this api can be used to send email using mailchimp templates.
  • Method: Post
  • Navigation Path: Endpoints -> /emailnotification -> Post
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/emailnotification

Caculate Invoice API:

• Calculate Invoice: this api can be invoked to calculate invoice.
  • Method: Post
  • Navigation Path: Endpoints -> /calculate -> /invoice -> Post
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/calculate/invoice

Caculate Quote API:

• Calculate Quote: this api can be invoked to calculate Quote.
  • Method: Post
  • Navigation Path: Endpoints -> /calculate -> /quote -> Post
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/calculate/quote

Sku API:

• Sku Price: this api can be invoked to gets the pricing information for the requested sku.
  • Method: Post
  • Navigation Path: Endpoints -> /skuprices -> Post
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/skuprices
• Sku Availability: this api can be invoked to gets sku availability by providing store number and availability type.
  • Method: Post
  • Navigation Path: Endpoints -> /skus -> /availability -> Post
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/skus/availability

Shipping API:

• Freight Shop Rate: this api can be invoked to calculate freightshopRate.
  • Method: Post
  • Navigation Path: Endpoints -> /freightshopRate -> Post
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/freightshopRate
• Calculate Packages: this api can be invoked to calculate packaging requirement.
  • Method: Post
  • Navigation Path: Endpoints -> /calculatePackages -> Post
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/calculatePackages

Payments API:

• AuthorizePayment: this api is used to authorize payment with customer profile.
  • Method: Post
  • Constant Values in Request Payload: version="4.5", transType="A" , bin="000001", terminalID="001"
  • We have to pass the above constant values in Request Payload everytime invoking this API
  • Navigation Path: Endpoints -> /authorizePayment -> Post
  • Base Path: [https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/authorizePayment/authorizePayment
• FullPayment: this api is used to book full payment of the order.
  • Method: Post
  • Constant Values in Request Payload: version="4.5", bin="000001", terminalID="001"
  • We have to pass the above constant values in Request Payload everytime invoking this API
  • Navigation Path: Endpoints -> /capturefullpayment -> Post
  • Base Path: [https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/capturefullpayment/capturefullpayment
• PartialPayment: this api is used to book partial payment of theorder.
  • Method: Post
  • Constant Values in Request Payload: version="4.5", bin="000001", terminalID="001"
  • We have to pass the above constant values in Request Payload everytime invoking this API
  • Navigation Path: Endpoints -> /capturepartialpayment -> Post
  • Base Path: [https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/capturepartialpayment/capturefullpayment
• GetCustomerProfile: this api can be used to get customer profile.
  • Method: Get
  • Navigation Path: Endpoints -> /getCustomerProfile/{Ecom_user_id} -> Get
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/getCustomerProfile/{Ecom_user_id}
• SaveCustomerProfile: this api can be used to save customer profile.
  • Method: Post
  • Navigation Path: Endpoints -> /saveCustomerProfile -> Post
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/saveCustomerProfile
• reversePayment: this api can be used for payment reversal.
  • Method: Post
  • Navigation Path: Endpoints -> /reversalPayment -> Post
  • Base Path: https://msdev.api.truckpro.io/ecom/exp/exp/v1/0/reversePayment
