Veeva CTMS System API

Description

• The API facilitates various operations like create, upsert, read veeva objects/entities data.
• This API also helps to Fetch the reference data of Picklists,Objecttype,Objectlifecycle,Object of the Organization Entity.
• This is generic API currently provide fetching details of various veeva objects
  • Data Items that need to be Synced can be categorized as below:
    • Master Data Items
    • Organisation
    • Location
    • Person
    • Study
    • Milestone
    • MilestoneTemplate
    • IISStudy
    • IISStudyCountry
    • Study Related/Transactional Data Items
    • Study Country
    • Study Site
    • EnrollmentMetrics (Reported_Result)

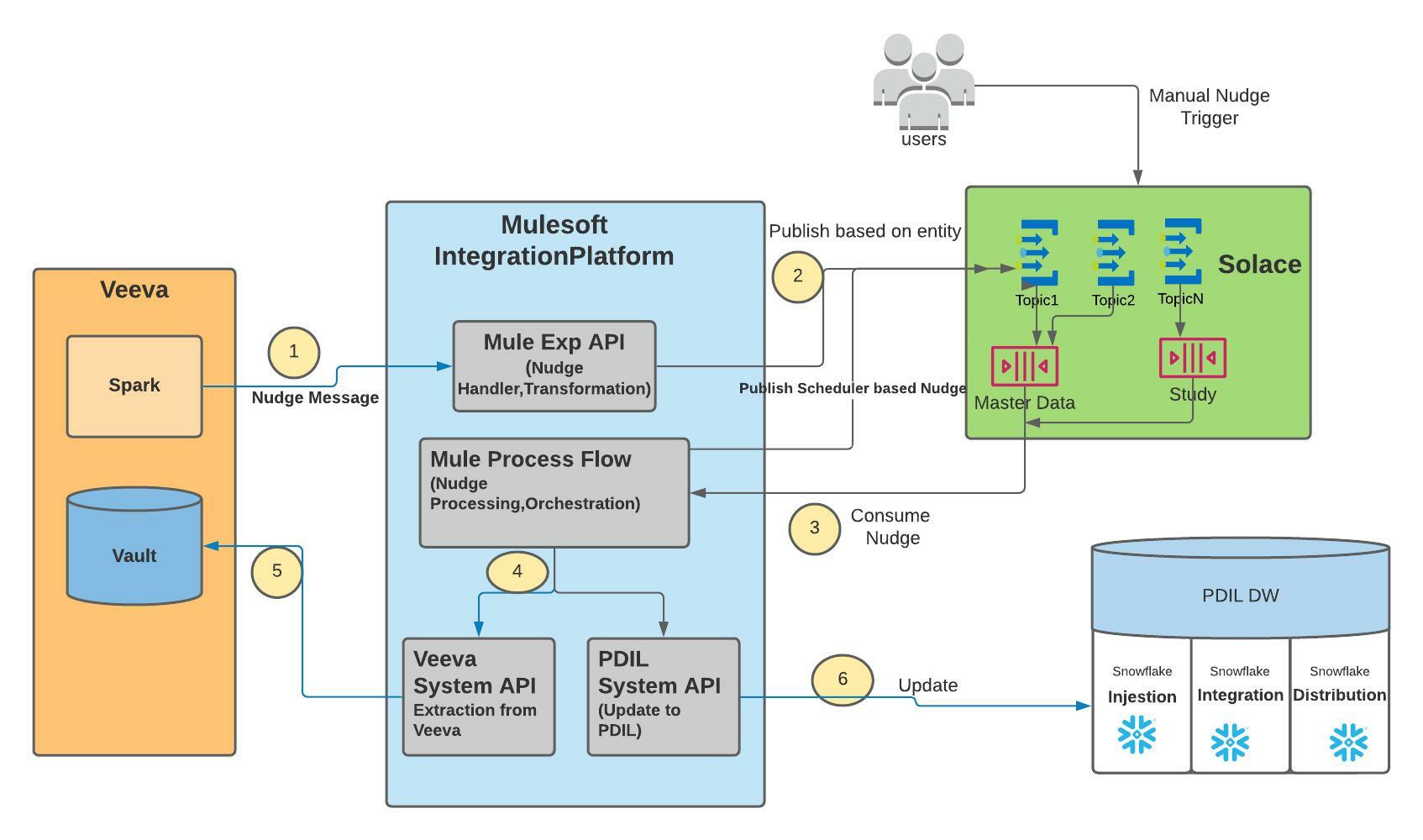

• This API serves as a design for API Led Connectivity approach of running an enterprise. This System API connects with Veeva CTMS.
• The API is designed as a REST API using RAML definition and uses JSON as an exchange format. Included are example requests and responses.

How to start?

More details about the process in Mulesoft Anypoint Exchange is available via the Support page.

Note: All requests that did not start from the Service Now request form will be rejected.

Intended Use

Create subject records in Veeva.

The System API has below functionality(v2.0)

Submitting a Query

GET: /query: Submitting a Query

VQL queries go to the /query REST interface.

Headers

Body Parameters

Request Body

{
    "query": "SELECT legacy_object_id__c,status__v,created_date__v,modified_date__v,created_by__v,modified_by__v,id,first_name__sys,last_name__sys from person__sys WHERE id CONTAINS ('V0B00000000A907')"
}

Response Details

On SUCCESS, the response includes the following information:

Response

{
   "responseStatus": "SUCCESS",
   "queryDescribe": {
       "object": {
           "name": "documents",
           "label": "documents",
           "label_plural": "documents"
       },
       "fields": [
           {
               "type": "id",
               "required": true,
               "name": "id"
           },
           {
               "label": "Name",
               "type": "String",
               "required": true,
               "name": "name__v",
               "max_length": 100
           }
       ]
   },
   "responseDetails": {
       "pagesize": 1000,
       "pageoffset": 0,
       "size": 5,
       "total": 5
   },
   "data": [
       {
           "id": 72,
           "name__v": "Cholecap-2021-brochure"
       },
       {
           "id": 63,
           "name__v": "Cholecap - Multisequence"
       },
       {
           "id": 36,
           "name__v": "Cholecap Study"
       },
       {
           "id": 25,
           "name__v": "Clinical Trial Reference"
       },
       {
           "id": 24,
           "name__v": "Formulary Guidelines"
       }
   ]
}

Paginating Results

POST: /query/{paginationUrl}

After you submit a query, the Vault REST API returns the first page of query results instead of all results at once. When the number of query results is greater than the page size, the response provides next_page and previous_page URLs for pagination. These URLs include information from the original query and allow you to paginate results with a POST request. We recommend using the next_page and previous_page URLs over manual pagination with PAGEOFFSET.

The next_page and previous_page endpoints only remain active for 20 minutes after you submit the original query. After that, you must resubmit the original query.

When querying workflows (legacy), events, or users, the response does not include the next_page or previous_page URL endpoints and displays all results on one page. In these cases, submit additional queries using PAGEOFFSET to paginate over the result set.

Retrieve Component Records

Component Record Collection

GET: /configuration/{component_type}

Retrieve all records for a specific component type.

URI Path Parameters

Headers

Response Details

On SUCCESS, the response contains all component records in the Vault for the specified component type. Each component record returns a minimum of API name and UI label, but most types return more. Complete details of the component can be retrieved using Retrieve Component Record or MDL.

Response

{
    "responseStatus": "SUCCESS",
    "data": [
        {
            "name": "color__c",
            "label": "Color",
            "Picklistentry": [
                {
                    "name": "red__c",
                    "value": "Red",
                    "order": 1,
                    "active": true
                },
                {
                    "name": "blue__c",
                    "value": "Blue",
                    "order": 2,
                    "active": true
                },
                {
                    "name": "green__c",
                    "value": "Green",
                    "order": 3,
                    "active": true
                }
            ],
            "active": true,
            "used_in": []
        }
    ]
}

Retrieve Object Record Collection

GET: /vobjects/{object_name}

Retrieve all records for a specific Vault Object.

URI Path Parameters

Query Parameters

Response Details

The response includes the object metadata for the specified object and the id and name__v of all object records configured on the object.

Response

{
    "responseStatus": "SUCCESS",
    "responseDetails": {
        "total": 3,
        "limit": 200,
        "offset": 0,
        "url": "/api/v20.1/vobjects/product__v",
        "object": {
            "url": "/api/v20.1/metadata/vobjects/product__v",
            "label": "Product",
            "name": "product__v",
            "prefix": "0PR",
            "order": 1,
            "source": "standard",
            "status": [
                "active__v"
            ],
            "label_plural": "Products",
            "in_menu": true
    },
    "data": [
        {
            "id": "0PR0202",
            "name__v": "CholeCap"
        },
        {
            "id": "0PR0303",
            "name__v": "Gludacta"
        },
        {
            "id": "0PR0404",
            "name__v": "Nyaxa"
        }
    ]
  }
}

Create Object Records

POST: /vobjects/{object_name}

Create Object Records in bulk.

You can use this endpoint to create User Tasks or User (user__sys) records. Learn more about User Tasks and the User & Person Objects in Vault Help.

• The maximum input file size is 1GB.
• The values in the input must be UTF-8 encoded.
• The maximum batch size is 500.

Note that you can only add relationships on object fields using ID values or based on a unique field on the target object. This API does not support object lookup fields.

Headers

URI Path Parameters

Body Parameters

Upload parameters as a JSON.

Note that if objecttype\_v and objecttype\_v.apiname\_v are both included, Vault creates the object with the type specified in objecttype\_v.

Query Parameters: Upsert Object Records

Upsert is a combination of create and update. With idParam, you can identify an object record by any unique object field. This allows you to use one input file to create new object records and update existing records at the same time. If a matching record exists, Vault updates the record with the unique field values specified in the input. If no matching object record exists, Vault creates a new record using the values in the input.

Request Body

[
{
    "name__v": "Cholecap",
    "generic_name__vs": "cholepriol phosphate",
    "product_family__vs": "cholepriol__c",
    "abbreviation__vs": "CHO",
    "external_id__v": "CHO-1110",
    "therapeutic_area__vs": "cardiology__vs",
    "manufacturer_name__v": "Veeva Labs",
    "regions__c": "north_america__c"
},
{
    "name__v": "Nyaxa",
    "generic_name__vs": "nitroprinaline oxalate",
    "product_family__vs": "nitroprinaline__c",
    "abbreviation__vs": "NYA",
    "external_id__v": "NYA-2220",
    "therapeutic_area__vs": "veterinary__c",
    "manufacturer_name__v": "Veeva Labs",
    "regions__c": "europe__c"
}
]

Response

{
    "responseStatus": "SUCCESS",
    "data": [
        {
            "responseStatus": "SUCCESS",
            "data": {
                "id": "0PR0771",
                "url": "api/v8.0/vobjects/product__v/0PR0771"
            }
        },
        {
            "responseStatus": "SUCCESS",
            "data": {
                "id": "0PR0772",
                "url": "api/v8.0/vobjects/product__v/0PR0772"
            }
        },
        {
            "responseStatus": "SUCCESS",
            "data": {
                "id": "0PR0773",
                "url": "api/v8.0/vobjects/product__v/0PR0773"
            }
        },
        {
            "responseStatus": "FAILURE",
            "errors": [
                {
                    "type": "INVALID_DATA",
                    "message": "Error message describing why this object record was not created."
                }
            ]
        }
    ]
}

Retrieve Object Record

GET /vobjects/{object_name}/{object_record_id}

Retrieve metadata configured on a specific object record in your Vault.

Headers

URI Path Parameters

Response Details

On SUCCESS, the response lists all fields and values configured on the object record.

When Custom Sharing Rules have been enabled on the object ("dynamic_security": true), the response includes the following additional information:

manually_assigned_sharing_roles

• owner__v
• viewer__v
• editor__v

These are the users and groups that have been manually assigned to each role on the object record.

Not all object records will have users and groups assigned to roles. You can update object records to add or remove users and/or groups on each role.

Response

{
  "responseStatus": "SUCCESS",
  "responseDetails": {
    "url": "/api/v20.1/vobjects/product__v/00PR0202",
    "object": {
      "url": "/api/v20.1/metadata/vobjects/product__v",
      "label": "Product",
      "name": "product__v",
      "label_plural": "Products",
      "prefix": "00P"
    }
  },
  "data": {
    "external_id__v": "CHO-457",
    "product_family__c": [
      "cholepriol__c"
    ],
    "compound_id__c": "CHO-55214",
    "abbreviation__c": "CHO",
    "therapeutic_area__c": [
      "endocrinology__c"
    ],
    "name__v": "CholeCap",
    "modified_by__v": 12022,
    "modified_date__v": "2016-05-10T21:06:11.000Z",
    "inn__c": null,
    "created_date__v": "2015-07-30T20:55:16.000Z",
    "id": "00PR0202",
    "internal_name__c": null,
    "generic_name__c": "cholepridol phosphate",
    "status__v": [
      "active__v"
    ],
    "created_by__v": 1
  },
  "manually_assigned_sharing_roles": {
    "owner__v": {
      "groups": null,
      "users": [
        12022
      ]
    },
    "viewer__v": {
      "groups": [
        3311303
      ],
      "users": [
        35551,
        48948,
        55002
      ]
    },
    "editor__v": {
      "groups": [
        4411606
      ],
      "users": [
        60145,
        70012,
        89546
      ]
    }
  }
}

Retrieve Object Record Attachments

GET: /vobjects/{object_name}/{object_record_id}/attachments

Retrieve a list of all attachments on a specific object record.

Headers

URI Path Parameters

Response Details

Shown above, the site__v object record has three versions of attachment id 558 and one version of attachment id 571. Attachment versioning uses integer numbers beginning with 1 and incrementing sequentially (1, 2, 3,…). There is no concept of major or minor version numbers with attachments.

Response

{
    "responseStatus": "SUCCESS",
    "data": [
        {
            "id": 558,
            "filename__v": "Site Contact List.docx",
            "description__v": "Facilities information and contacts",
            "format__v": "application/vnd.openxmlformats-officedocument.wordprocessingml.document",
            "size__v": 11450,
            "md5checksum__v": "9c6f61847207898ca98431d3e9ad176d",
            "version__v": 3,
            "created_by__v": 46916,
            "created_date__v": "2015-01-07T21:42:47.772Z",
            "versions": [
                {
                    "version__v": 1,
                    "url": "https://myvault.veevavault.com/api/v20.1/vobjects/site__v/1357752909483/attachments/558/versions/1"
                },
                {
                    "version__v": 2,
                    "url": "https://myvault.veevavault.com/api/v20.1/vobjects/site__v/1357752909483/attachments/558/versions/2"
                },
                {
                    "version__v": 3,
                    "url": "https://myvault.veevavault.com/api/v20.1/vobjects/site__v/1357752909483/attachments/558/versions/3"
                }
            ]
        },
        {
            "id": 571,
            "filename__v": "Site Area Map.png",
            "format__v": "image/png",
            "size__v": 109828,
            "md5checksum__v": "78b36d9602530e12051429e62558d581",
            "version__v": 1,
            "created_by__v": 46916,
            "created_date__v": "2015-01-16T22:28:44.039Z",
            "versions": [
                {
                    "version__v": 1,
                    "url": "https://myvault.veevavault.com/api/v20.1/vobjects/site__v/1357752909483/attachments/571/versions/1"
                }
            ]
        }
    ]
}

Create Object Record Attachment

POST /api/{version}/vobjects/{object_name}/{object_record_id}/attachments

Create a single object record attachment. If the attachment already exists, Vault uploads the attachment as a new version of the existing attachment.

Headers

URI Path Parameters

File Upload

To upload the file, use the multi-part attachment with the file component "file={file_name}". The maximum allowed file size is 4GB.

If an attachment is added which has the same filename as an existing attachment on a given object record, the new attachment is added as a new version of the existing attachment. If an attachment is added which is exactly the same (same MD5 checksum value) as an existing attachment on a given object record, the new attachment is not added.

The following attribute values are determined based on the file in the request: filename__v, format__v, size__v.

Response

{
    "responseStatus": "SUCCESS",
    "data":
    [{
        "id": "558",
        "version__v": 3
    }]
}

Initiate Object Action on a Single Record

POST /vobjects/{object_name}/{object_record_id}/actions/{action_name}

Use this request to initiate an action on a specific object record.

Headers

URI Path Parameters

Body Parameters

Include any parameters required to initiate the action as name-value pairs in the request body. You can retrieve the required parameters for your action by Retrieving Object User Action Details.

Response

{
    "responseStatus": "SUCCESS"
}

Retrieve Picklist Values

GET /objects/picklists/{picklist_name}

Retrieve all available values configured on a picklist.

Headers

URI Path Parameters

Response Details

Response

{
  "responseStatus": "SUCCESS",
  "responseMessage": "Success",
  "picklistValues": [
    {
      "name": "full__v",
      "label": "Full User"
    },
    {
      "name": "read_only__v",
      "label": "Read-only User"
    },
    {
      "name": "external__v",
      "label": "External User"
    },
    {
      "name": "view_based__v",
      "label": "View-Based User"
    }
  ]
}

Multi-File Load

Load Data Objects

POST /services/loader/load

Create a loader job load a set of data files.

Headers

Body Parameters

The body of your request should be a JSON file containing the set of data objects to extract.

Query Parameters

Request Body

[
  {
    "object_type": "documents__v",
    "action": "create",
    "file": "documents.csv",
    "order": 1
  },
  {
    "object_type": "vobjects__v",
    "object": "product__v",
    "action": "upsert",
    "file": "products.csv",
    "order": 2,
    "idparam": "extenal_id__v"
  },
  {
    "object_type": "vobjects__v",
    "object": "annotation_keywords__sys",
    "action": "create",
    "file": "claims.csv",
    "order": 3,
    "X-VaultAPI-MigrationMode": true
  },
  {
    "object_type": "groups__v",
    "action": "update",
    "file": "groups.csv",
    "order": 4
  }
]

Response

{
    "responseStatus": "SUCCESS",
    "url": "/api/v20.1/services/jobs/192102",
    "job_id": 192102,
    "tasks": [
        {
            "task_id": "1",
            "object_type": "documents__v",
            "action": "create",
            "file": "documents.csv"
        },
        {
            "task_id": "2",
            "object_type": "vobjects__v",
            "object": "product__v",
            "action": "upsert",
            "idparam": "extenal_id__v",
            "file": "products.csv"
        },
        {
            "task_id": "3",
            "object_type": "vobjects__v",
            "object": "annotation_keywords__sys",
            "action": "create",
            "X-VaultAPI-MigrationMode": true,
            "file": "claims.csv"
        },
        {
            "task_id": "4",
            "object_type": "groups__v",
            "action": "update",
            "file": "groups.csv"
        }
    ]
}

Retrieve Loader Extract Results

GET /services/loader/{job_id}/tasks/{task_id}/results

After submitting a request to extract object types from your Vault, you can query Vault to retrieve results of a specified job task.

Headers

URI Path Parameters

Response Details

On SUCCESS, the response includes a CSV file of the results of a specific extract job task.

Response (csv)

file,rendition_type__v,id,name__v,type__v
/61915/50/0_1/renditions/viewable_rendition__v.pdf,viewable_rendition__v,50,Facts about High Cholesterol Spring 2016,Promotional Material
/61915/8/0_1/renditions/viewable_rendition__v.pdf,viewable_rendition__v,8,ashley-harvey,Personnel

Retrieve Loader Extract Renditions Results

GET: /services/loader/{job_id}/tasks/{task_id}/results/renditions

After submitting a request to extract object types from your Vault, you can query Vault to retrieve results of a specified job task that includes renditions requested with documents.

Headers

URI Path Parameters

Response Details

On SUCCESS, the response includes a CSV file that includes rendition files for documents or document versions.

Response

file,rendition_type__v,id,name__v,type__v
/61915/50/0_1/renditions/viewable_rendition__v.pdf,viewable_rendition__v,50,Facts about High Cholesterol Spring 2016,Promotional Material
/61915/8/0_1/renditions/viewable_rendition__v.pdf,viewable_rendition__v,8,ashley-harvey,Personnel

User Name and Password

POST: /auth

Authenticate your account using your Vault user name and password to obtain Vault Session ID. Vault limits the number of Authentication API calls based on the user name and the domain name used in the API call.

Headers

Body Parameters

Request Body

{
    "username" : "test.username.dev@sb-roche.com",
    "password" : "cjMyenBnbllzV0c5UVlrag=="
}

Response

{
  "responseStatus": "SUCCESS",
  "sessionId": "3B3C45FD240E26F0C3DB4F82BBB0C15C7EFE4B29EF9916AF41AF7E44B170BAA01F232B462BE5C2BE2ACB82F6704FDA216EBDD69996EB23A6050723D1EFE6FA2B",
  "userId": 12021,
  "vaultIds": [
    {
      "id": 1776,
      "name": "PromoMats",
      "url": "https://promomats-veevapharm.veevavault.com/api"
    },
    {
      "id": 1777,
      "name": "eTMF",
      "url": "https://etmf-veevapharm.veevavault.com/api"
    },
    {
      "id": 1779,
      "name": "QualityDocs",
      "url": "https://qualitydocs-veevapharm.veevavault.com/api"
    }
  ],
  "vaultId": 1776
}

OAuth 2.0 / OpenID Connect

POST: /auth/oauth/session/{oath_oidc_profile_id}

Authenticate your account using OAuth 2.0 / Open ID Connect token to obtain a Vault Session ID.

When requesting a sessionId, Vault allows the ability for Oauth2/OIDC client applications to pass the client_id with the request. Vault uses this client_id when talking with the introspection endpoint at the authorization server to validate that the access_token presented by the application is valid.

Headers

URI Path Parameters

Body Parameters

Response

{
  "responseStatus": "SUCCESS",
  "sessionId": "3B3C45FD240E26F0C3DB4F82BBB0C15C7EFE4B29EF9916AF41AF7E44B170BAA01F232B462BE5C2BE2ACB82F6704FDA216EBDD69996EB23A6050723D1EFE6FA2B",
  "userId": 12021,
  "vaultIds": [
    {
      "id": 1776,
      "name": "PromoMats",
      "url": "https://promomats-veevapharm.veevavault.com/api"
    },
    {
      "id": 1777,
      "name": "eTMF",
      "url": "https://etmf-veevapharm.veevavault.com/api"
    },
    {
      "id": 1779,
      "name": "QualityDocs",
      "url": "https://qualitydocs-veevapharm.veevavault.com/api"
    }
  ],
  "vaultId": 1776
}

Authentication:

• When you send a request, the request must include authentication information.
• In each API request that you send, set "sourceApp", "username" and "password (base64 encrypted password)" in headers.

High-Level Design

Business Case

• Business need an interface to help Automate migration of Master data items and Study specific data items from Veeva CTMS vault to PDIL.

• Data Items that need to be Synced can be categorized as below:

  • Master Data Items
  • Organisation
  • Location
  • Person
  • Study
  • Milestone
  • MilestoneTemplate
  • IISStudy
  • IISStudyCountry

• Study Related/Transactional Data Items

  • Study Country
  • Study Site
  • EnrollmentMetrics (Reported_Result)

The Master Data and Study items should be limited to these sub types and attributes where Veeva Vault is the SoR

Technical details

Interested in knowing how it works behind the scenes? Further documentation on requirements and solution design can be found in the Roche wiki:

Requirements

High Level Solution Design

Low Level Solution Design

Release Notes

When an API version is to be deprecated, advance notice is given at least one year before support ends. Consuming Apps are advised to check back regularly for new API versions and deprecation schedule.
